399340: 100 Amp Ground Collector With Deflector (Right)

The Safe-Lec 2® series by Insul-8 is the new standardin the overhead crane, monorail, and material handling electrification industry.

Safe-Lec 2® collectors ensure positivetracking due to its v-contact. The collectors accurately track the conductorbar groove through its wide range of motion, allowing for the shoe to make continuous,superior conductivity with the rail.

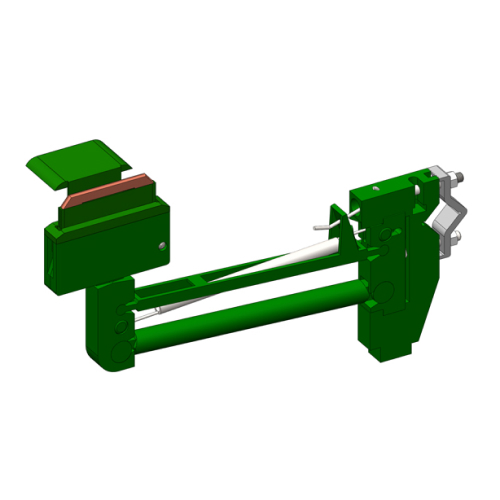

This is a 100 Amp ground collector (green) with a right deflector.Deflectors prevent the ground collector from coming in contact with adjacent phase collectors.

There is a collector shoe shunt wire that is imbedded within the arm of the collector. There is incoming cable that is connected to the terminal lug located at the collectors’ base.

Safe-Lec 2® Features:

• IP2 "finger safe” operation; no live parts exposed
• Bolted Splice that Provides Durability and Longevity
• Easy System Configuration
• Positive Tracking
• Versatile covers

Technical Specifications:

• Curve: 60” min
• Max Speed: 1,200 feet per minute (365.8meters/minute)
• Current Capacity: 100 Amps
• Weight: 1.80lbs (0.82kg)
