399358: 100 Amp Ground Collector For Pick-Up Guide (Green)

The Safe-Lec 2® series by Insul-8 is the new standard in the overhead crane, monorail, and material handling electrification industry.

Safe-Lec 2® collectors ensure positive tracking due to its v-contact. The collectors accurately track the conductor bar groove through its wide range of motion, allowing for the shoe to make continuous,superior conductivity with the rail.

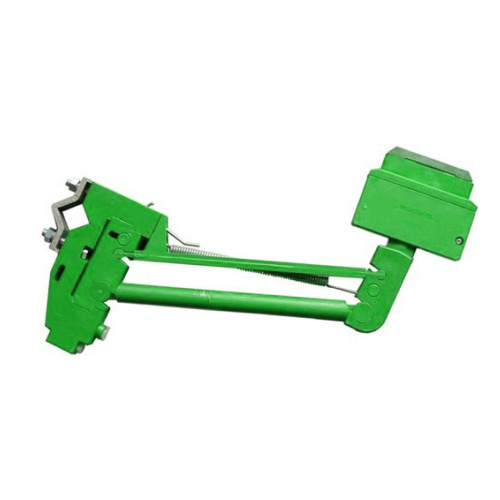

This is a 100 Amp ground collector (green). This is a collector for pick-up-guides. Pick-up guides are used on discontinuous systems to guide the collectors both on and off the conductors.

Safe-Lec 2® Features:

• IP2 "finger safe” operation; no live parts exposed
• Bolted Splice that Provides Durability and Longevity
• Easy System Configuration
• Positive Tracking
• Versatile covers

Technical Specifications:

• Curve: 60” min
• Max Speed: 1,200 feet per minute (365.8meters/minute)
• Current Capacity: 100 Amps
• Weight: 2.42lbs (1.09kg)
• Refer to this pagefor installation information.
