Duct-O-Wire Pendant Control Stations: Pushbutton Crane and Hoist Controls for US Overhead Crane Applications

Duct-O-Wire pendant control stations are pushbutton crane and hoist control solutions for US overhead crane applications, available across six series from compact two-button enclosures to multi-function and severe environment configurations. Crane-Controls.com features Duct-O-Wire pendant control stations across six series for US crane builders, electrical contractors, and maintenance teams requiring reliable pushbutton crane and hoist control from a single specialist US source.

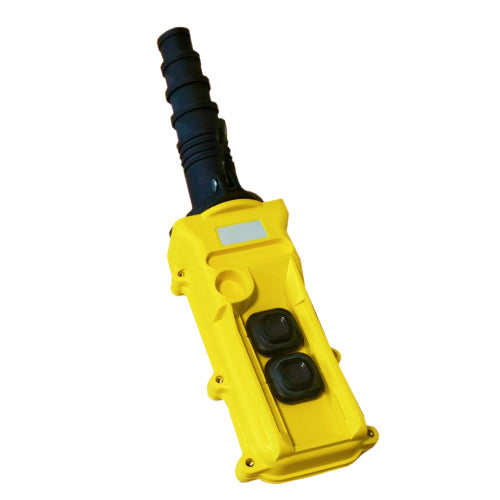

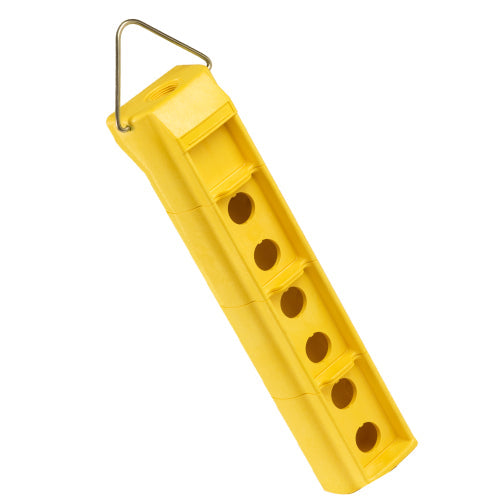

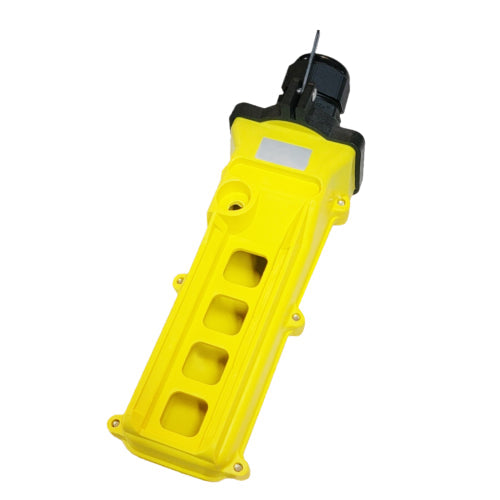

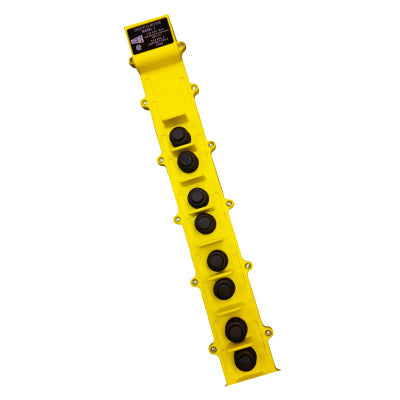

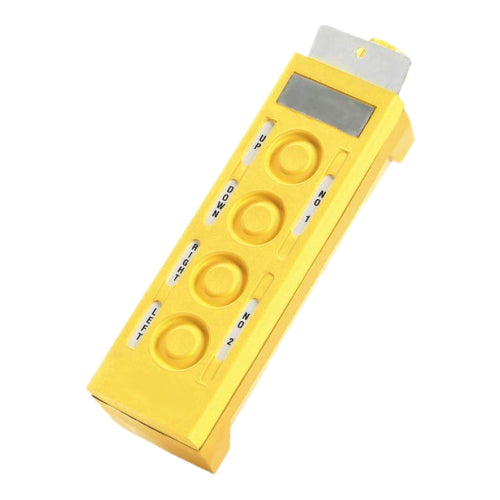

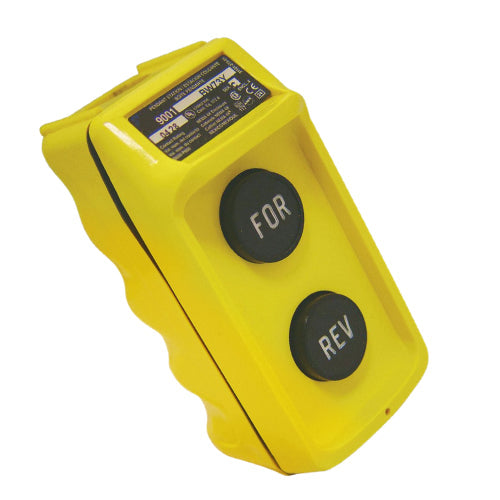

Crane-Controls.com features the Duct-O-Wire pendant range across six series. The BW Series is a universal pendant station rated NEMA Type 1, 3, 3R, 4, and 4X with double circuit blocks on each button, interchangeable legend inserts, and internal strain relief — UL listed and CSA certified for US overhead crane and hoist pushbutton control applications. The L Series is available in 2, 4, 6, 8, and 10-button configurations with a bright yellow polypropylene enclosure for visibility, two-piece enclosure for simplified field wiring, double break silver-plated switch contacts, neon and LED pilot lights, and a multi-step cord grip accepting 4 through 24 conductor round cable. The J Series is a lightweight compact pushbutton pendant for US crane and hoist applications where durability and visibility are the primary specification requirements. The PSW Series includes a cord grip, neoprene boots, and provision for a strain relief bracket, with a top accessory area accepting any two-button insert or any two accessories. The RPB Series features steel-reinforced nitrile rubber construction with a tongue-and-groove cover plate design for superior protection against dust, moisture, and contaminants — supporting single and two-speed control with momentary and maintained switch configurations, UL listed, CSA approved, and NEMA 1, 3, 4, and 12 compliant. The SKYP Series is a heavy-duty pendant station for severe environment US crane and hoist applications. Pendant Accessories are also stocked for component replacement and system maintenance across the Duct-O-Wire pendant range.

All Duct-O-Wire pendant control stations offered by Crane-Controls.com comply with OSHA 1910.179 pendant voltage requirements for US overhead and gantry crane applications. Crane-Controls.com's technical team provides pre-sale application support for Duct-O-Wire pendant series selection and button configuration for US crane and hoist applications. OOSHA 1910.179, CMAA, and ASME B30 compliant installations supported.
