Crane-Controls.com Cable & Hose Carriers

Crane-Controls.com Cable & Hose Carriers — Light, Standard, and Heavy Duty Cable Chains for US Overhead Crane Applications

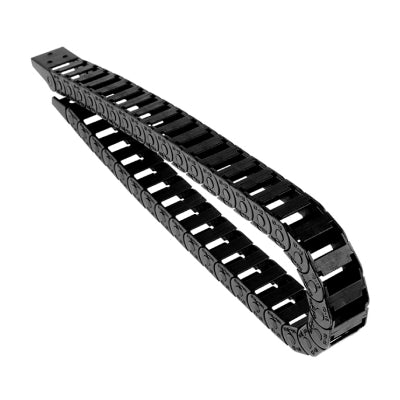

Crane-Controls.com stocks its own line of snap-open-link plastic cable carriers, organized by Light Duty, Standard Duty, and Heavy Duty Cable Chain to match the cable cavity size, bend radius, and load capacity requirements of US overhead crane, hoist, and industrial machinery festoon installations. Each cable chain series uses a snap-together open-link design with matching mounting bracket sets, allowing cables and hoses to be installed, inspected, and serviced without disassembling the full carrier run.

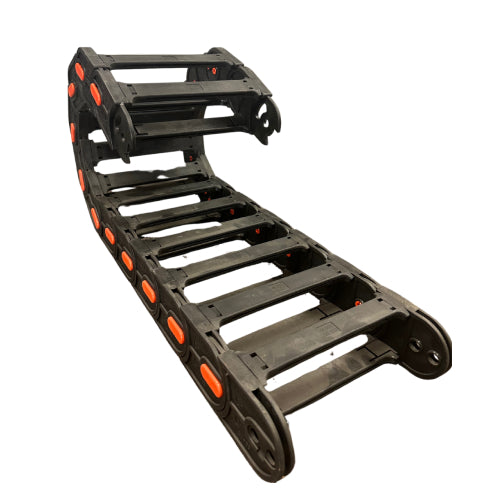

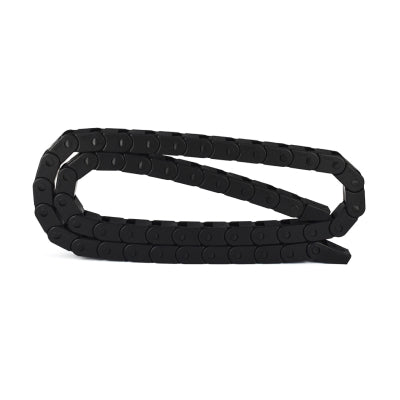

Heavy Duty Cable Chain is built for the largest cable bundles, with bend radii from 125mm to 160mm and cavity widths up to 300mm to accommodate multiple power and control cables in a single carrier run. Standard Duty Cable Chain covers the most common festoon specification range, with bend radii from 50mm to 125mm and cavity widths from 38mm to 110mm, balancing cable capacity with carrier weight and cost. Light Duty Cable Chain is the smallest-profile option, with bend radii from 20mm to 50mm and cavity widths from 6mm to 53mm, suited to compact cable bundles and shorter festoon runs.

Crane-Controls.com's technical team provides pre-sale application support for cable chain selection, helping US crane builders, electrical contractors, and maintenance teams match cavity size, bend radius, and bracket configuration to their cable fill and crane travel requirements. OSHA and ASME B30 compliant installations supported.
