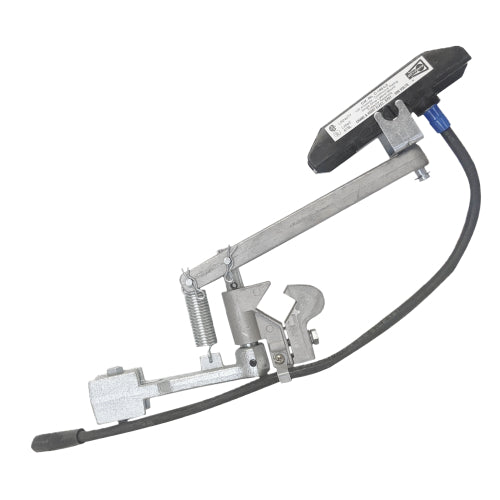

C-100-L5: 100 Amp Collector Single Shoe Lateral Mount With Steel Counter Weights.

DUCT-O-BAR’s Figure 8 Electrical Conductor Systems are for overhead cranes, trolleys, monorails, hoists, conveyors, automatic stacker-retrieval systems... and any application that requires a reliable,safe, and economical moving power system.

Duct-O-Wire Figure 8 Conductor Bars are complete as assemblies that are equipped with a 600-volt conductor bar (10ft), an insulating cover, splice cover, and connector pins or joint clamps as applicable.

This is a C-Series collector assembly. This collector is to be used on short continuous run systems. The C-100-L5 has excellent tracking capability due to its steel pivot points.

Model Specifications:

• Rating: 100 Amps
• Weight: 2.9lbs (1.3kg)
• Shoe #: 1
• Mount: Lateral with steel counter weights
• LENGTH: 16”

Pricing is quoted ex-works our warehouse. Please include freight instructions with an order (courier / carrier, account and service level you require). Alternatively, we can pre-pay and add freight charges to an order.

DISCLAIMER: Some products featured on this site are made to order and are not always available from stock. If parts are needed urgently please contact us by phone (1-888-822-2024) or email (info@crane-controls.com) before placing your order to confirm lead times.
