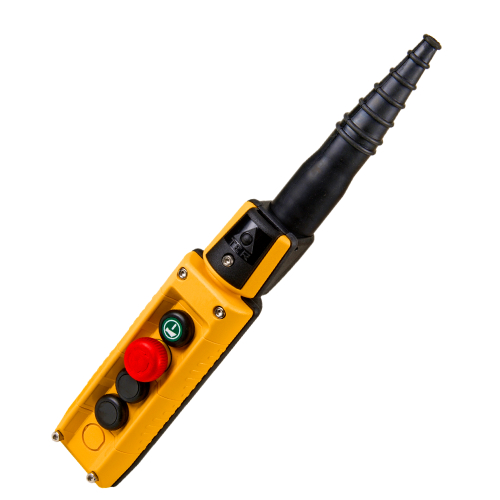

F70AY12000200001: 4 Button Mike Pendant Estop Reset and 2 x 2 Speed

The F70AY12000200001 is an ergonomic designed pendant that comes equipped with:

1 Normally Open (NO) Reset Alarm Button

1 Normally Closed (NC) Emergency Stop Mushroom Button

4 Normally Open (NO) contacts beneath 2 Black Buttons Mechanically Interlocked Between Pairs

Technical Specifications:

Operational Temperature: - -40C/+80C
Mechanical Life: 1,000,000 operations
- Certifications: CE - (c)UL EAC- SIL 1
- Ingress Protection: IP66/IP67/IP69K
- NEMA: Type 1, 4 and 4X
- Length: 201mm
Operational Current: 3A
- Operational Voltage: 250V

This model is weather resistant due to its durable rubber components. Reduced installation time with cable entry and contact elements separate from the actuators.
