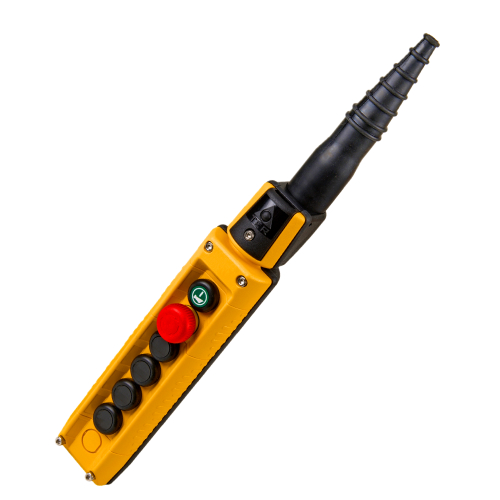

F70EY12000400001: 6 Button Mike Pendant Estop Reset and 4 x 2 Speed

The F70BY12060000001 is an ergonomic designed pendant that comes equipped with:

- 1 Normally Open (NO) Reset Alarm Button
- 1 Normally Closed (NC) Emergency Stop Mushroom Button
- 6 Normally Open (NO) Black Buttons Mechanically Interlocked Between Pairs

Technical Specifications:

- Operational Temperature: - -40°C/+80°C
- Mechanical Life: 1,000,000 operations
- Certifications: CE - (c)UL – EAC- SIL 1
- Ingress Protection: IP66/IP67/IP69K
- NEMA: Type 1, 4 and 4X
- Length: 321mm
- Operational Current: 3A
- Operational Voltage: 250V

This model is weather resistant due to its durable rubber components. Reduced installation time with cable entry and contact elements separate from the actuators.
