F70BY12000600001: 8 Button Mike Pendant Estop Reset and 6 x 2 Speed

F70BY12000600001: 8 Button Mike Pendant Estop Reset and 6 x 2 Speed

TER
(Code: IPC0802006)
In Stock
F70BY12000600001: 8 Button Mike Pendant Estop Reset and 6 x 2 Speed
F70BY12000600001: 8 Button Mike Pendant Estop Reset and 6 x 2 Speed

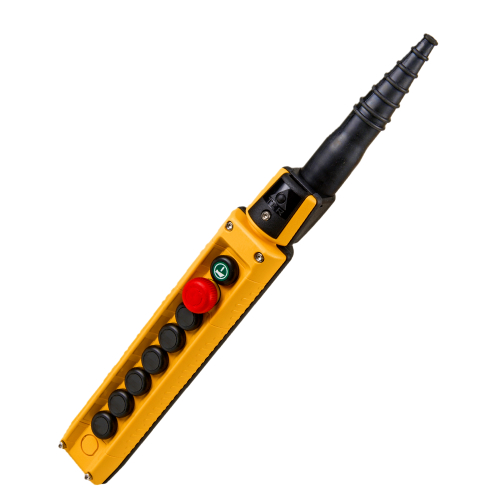

F70BY12000600001 is an ergonomic designed pendant that comes equipped with:

- 1 Normally Open (NO) Reset Alarm Button
- 1 Normally Closed (NC) Emergency Stop Mushroom Button
- 12 Normally Open (NO) contacts beneath 6 Black Buttons Mechanically Interlocked Between Pairs

Technical Specifications:

- Operational Temperature: - -40°C/+80°C
- Mechanical Life: 1,000,000 operations
- Certifications: CE - (c)UL – EAC- SIL 1
Ingress Protection: IP66/IP67/IP69K
- NEMA: Type 1, 4 and 4X
- Length: 321mm
- Operational Current: 3A
- Operational Voltage: 250V

This model is weather resistant due to its durable rubber components. Reduced installation time with cable entry and contact elements separate from the actuators.
