PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC

PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC

TER
(Code: IPC0810239)
In Stock
PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC
PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC

The DIN position limit switch by TER contains die-cast aluminum enclosures as well as thermoplastic heads that are made of nylon, reinforced with fiberglass.

These models are guaranteed to protect against dust and water due to their internal water-resistant components.

This central spring rod with ferrule design requires the PRSL0025XXswitch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, snap action.

Features:

  • Certifications: CE marking and EAC
  • Size: 104x40x43 mm, with 4 fixing holes
  • Mechanical life of switches: 1 million operations
  • Operation frequency: 3600 operations/hour max
  • Extreme temperature resistance: -25°C to +70°C

Technical Specifications:

  • Rated operational current: 3 A
  • Rated operational voltage: 250 V
  • Rated thermal current: 10 A
  • Rated insulation voltage: 300 V~
  • Mechanical life: 1x106 operations
  • Connections: Screw-type Terminals
  • Wires: 1x2.5 mm2 , 2x1.5 mm2
  • Tightening torque: 0.8 Nm

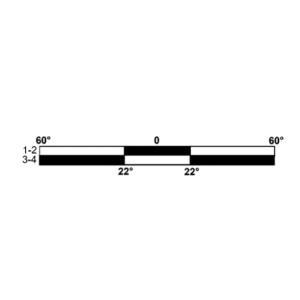

*View attached image for actuating travel diagram

US$ 339.90
0g
