PF33771100: Standard Ball Plunger Limit Switch With 1NO + 1NC Contacts

PF33771100: Standard Ball Plunger Limit Switch With 1NO + 1NC Contacts

TER
(Code: IPC0810260)
In Stock
PF33771100: Standard Ball Plunger Limit Switch With 1NO + 1NC Contacts
PF33771100: Standard Ball Plunger Limit Switch With 1NO + 1NC Contacts

Standard Position Limit Switches by TER are designedfor confidently controlling the movement of traverse machine tools such ashoists and overhead cranes.

Limit Switches are built with wear resistant materials toguarantee protection against dust and water.

This model can be used in the building, automation andentertainment industry. Standardpositionlimit switcheshave 15 different heads/actuators (with various levers,rods, plungers).

This particular model has: a ball plunger head

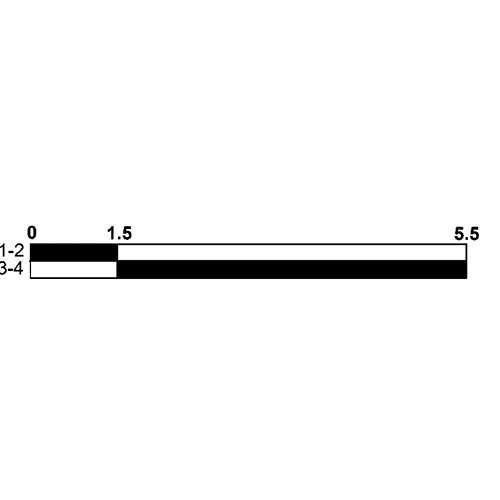

*View attached image for actuating travel diagram

Features:

  • Certifications: CE - UL - (c)UL
  • Micro-Switch Type: PRSL0036XX 1NO+1NC snapaction
  • Opening: Positive opening NC contacts
  • Switch Life: 1 million operations
  • Operation Frequency: 3600 operations/hour max
  • Extreme Temp. Resistance: -25C to +70C


US$ 309.05
