PF33776600: Standard Central Spring Rod Switch With 1NO Slow Action Contact

PF33776600: Standard Central Spring Rod Switch With 1NO Slow Action Contact

TER
(Code: IPC0810280)
In Stock
PF33776600: Standard Central Spring Rod Switch With 1NO Slow Action Contact
PF33776600: Standard Central Spring Rod Switch With 1NO Slow Action Contact

Standard Position Limit Switches by TER are designed for confidently controlling the movement of traverse machine tools such as hoists and overhead cranes.

Limit Switches are built with wear resistant materials to guarantee protection against dust and water.

This model can be used in the building, automation and entertainment industry. Standard position limit switches have 15 different heads/actuators (with various levers,rods, plungers).

This particular model has: a stiffened spring rod

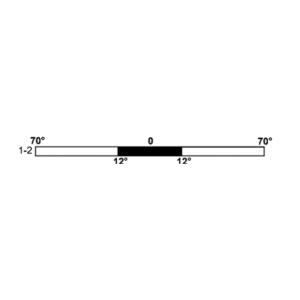

*View attached image for actuating travel diagram

Features:

  • Certifications: CE - UL - (c)UL
  • Micro-Switch Type: PRSL0037XX 1NC slow action
  • Opening: Positive opening NC contacts
  • Switch Life: 1 million operations
  • Operation Frequency: 3600 operations/hour max
  • Extreme Temp. Resistance: -25°C to +70°C
US$ 309.05
0g
