PF33780200: Standard Roller Iron Lever Switch With 2NO + 2NC Contacts

PF33780200: Standard Roller Iron Lever Switch With 2NO + 2NC Contacts

TER
(Code: IPC0810286)
In Stock
PF33780200: Standard Roller Iron Lever Switch With 2NO + 2NC Contacts
PF33780200: Standard Roller Iron Lever Switch With 2NO + 2NC Contacts

Standard Position Limit Switches by TER are designed for confidently controlling the movement of traverse machine tools such as hoists and overhead cranes.

Limit Switches are built with wear resistant materials to guarantee protection against dust and water.

This model can be used in the building, automation and entertainment industry. Standard position limit switches have 15 different heads/actuators (with various levers,rods, plungers).

This particular model has: a central roller iron leverhead

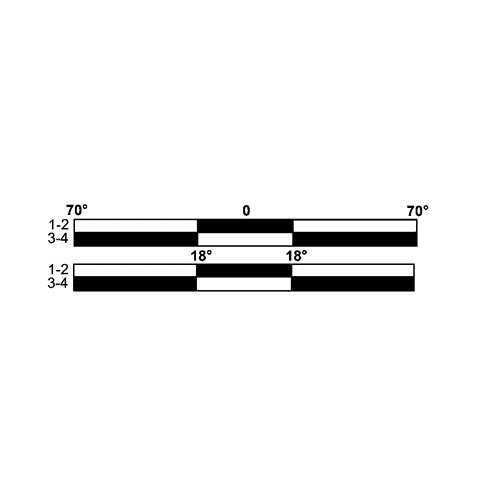

*View attached image for actuating travel diagram

Features:

  • Certifications: CE - UL - (c)UL
  • Micro-Switch Type: PRSL0036XX 1NO+1NC snapaction (2x)
  • Opening: Positive opening NC contacts
  • Switch Life: 1 million operations
  • Operation Frequency: 3600 operations/hour max
  • Extreme Temp. Resistance: -25°C to +70°C


US$ 309.05
0g
