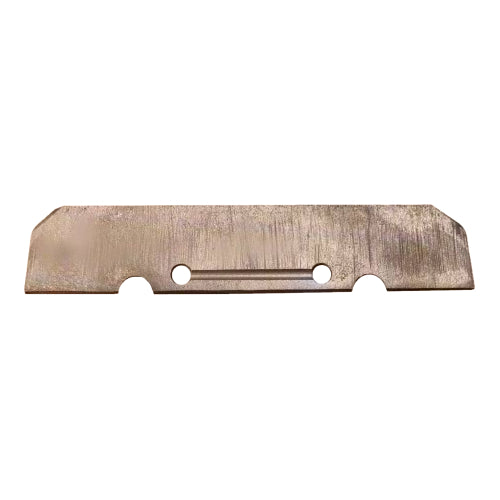

11157: 100 Amp Copper Graphite Shoe for 100 Amp Case (Standard)
The 11157 is the 100 amp replacement shoe for both the 100A J-Head C Base 8-Bar Collector Assembly and the 100A J-Head H Base 8-Bar collector assembly. The C-Base Type is used for straight system runs of 600V or less; this includes the Standard Mount (Part No. 13613), Standard tandem mount (Part No. 13626), the Self-Centering Standard Mount (Part No. 13625) and the Self-Centering Tandem Standard Mount (Part No. 13628). The H-Base Type is also used for straight system runs of 600V or less but curves to a minimum of 58 inch radius. This includes the Standard Mount (Part No. 13629) and the Self-Centering Standard Mount (Part No.13630). The replacement copper graphite shoe has a current rating of 100 amps and is 4.75 inches in length.
