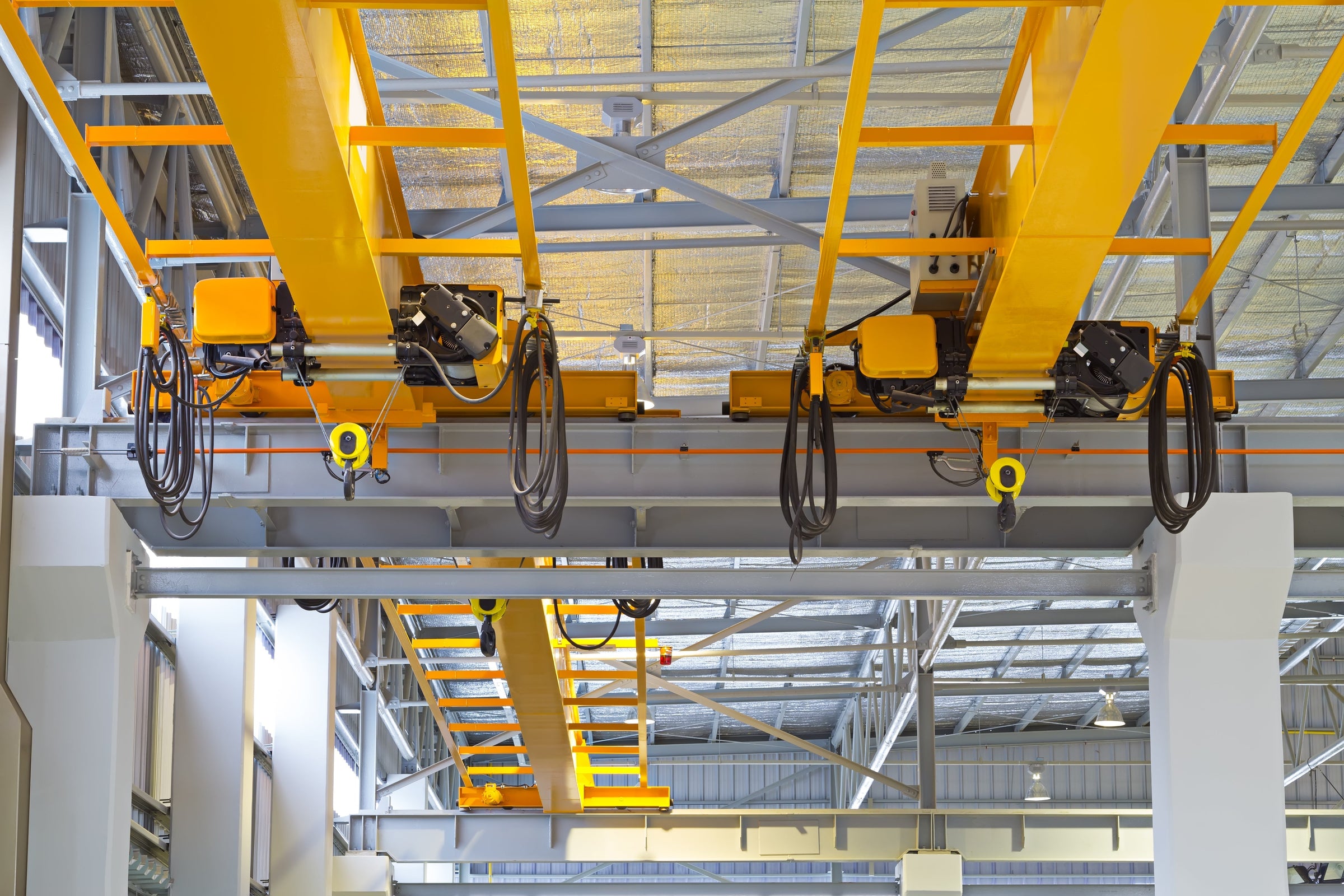

How to Choose the Right Power Supply for Your US Overhead Crane
Overhead cranes, hoists, monorails, and conveyors all require a continuous, reliable power supply that moves with the hoist or trolley across the full travel range of the bridge or runway. Three technologies solve this problem: conductor bar, festoon cable systems, and cable reels. Each is appropriate for a different set of application conditions, and selecting the wrong system for your crane type, travel speed, amperage requirement, or environment is one of the most common — and most costly — mistakes in crane electrification.
This guide covers how each system works, where each one is the right choice, and how to match the specification to your crane installation requirements under OSHA 1910.179, CMAA, and ASME B30 standards.
What Is Conductor Bar?
Conductor bar—also known as conductor rail—is a fixed electrical power distribution system used to supply continuous power to overhead cranes, hoists, monorails, and other mobile industrial equipment. The conductor bar is mounted along the crane runway or monorail beam, while a collector shoe assembly travels with the moving equipment, maintaining continuous electrical contact as the crane moves.
Unlike trailing power cables, conductor bar systems provide a permanent method of delivering electrical power to the crane's electrical system throughout the full length of the runway with no travel loss due to storage requirements.
When Is Conductor Bar Used?
Conductor bar systems are commonly specified for permanent overhead crane and monorail installations where reliable, continuous power delivery is required. They are used across a wide range of industrial facilities, including manufacturing plants, warehouses, steel mills, fabrication shops, automotive facilities, and material handling operations.
Modern enclosed conductor bar systems house the energized conductors within an insulated enclosure, reducing the risk of accidental contact with live electrical components. When properly selected, installed, and maintained, these systems can help support compliance with applicable safety requirements for overhead crane installations, including OSHA 29 CFR 1910.179 and other applicable electrical codes and standards.
When Should You Specify Conductor Bar?
Conductor bar is commonly selected when an application requires:
Permanent Crane Runways
Conductor bar is designed for fixed overhead crane and monorail installations where equipment repeatedly travels along the same runway. It is suitable for both short workstation crane systems and long industrial crane bays.
Continuous Power Delivery
Because the collector shoe maintains constant contact with the conductor rail, electrical power remains available throughout the crane's travel without the need for trailing power cables.
Higher Current Capacity
Conductor bar systems are available in a wide range of current ratings to support light-duty workstation cranes through heavy-duty industrial crane applications. Product selection depends on the electrical requirements, duty cycle, and operating environment of each installation.
Longer Runways and Higher Travel Speeds
Conductor bar is often selected for applications involving long runway lengths or higher travel speeds where alternative electrification methods, such as festoon systems, may be less suitable.
Improved Personnel Protection
Enclosed conductor bar systems help reduce exposure to energized conductors by housing the electrical conductors within an insulated enclosure. This design can improve personnel safety while protecting the conductors from accidental contact and many environmental contaminants.
Challenging Operating Environments
Conductor bar systems are available in configurations suitable for a variety of industrial environments, including outdoor installations, wet or corrosive conditions, high-temperature applications, and refrigerated or cold-storage facilities. Depending on the manufacturer and product series, options may include corrosion-resistant materials, stainless steel components, heated systems, and protective coatings.
Motor Power Applications with Minimal Control Signal Requirements
When powering 3-phase motors where control signal requirements are limited or can be addressed through alternative means, conductor bar is often the preferred electrification option. For applications requiring multiple control signals or mixed services, festoon or cable reels may offer greater flexibility.
Why Choose Conductor Bar?
Compared with other crane electrification methods, conductor bar systems can provide:
- Continuous electrical power throughout the crane runway
- Reduced cable management requirements
- Reliable power transfer for repetitive crane movement
- Enclosed conductor protection for improved safety
- Configurations suitable for a broad range of industrial environments
- Modular designs that can be expanded or modified as operational requirements change
- Requires no storage length for stacked festoon trolleys
- Does not droop like cable reels for extended travel distances
The appropriate electrification method depends on the application, operating environment, runway configuration, travel speed, current requirements, and maintenance objectives.
Conductor Bar Brands Available from Crane-Controls.com
Crane-Controls.com supplies conductor bar systems from leading manufacturers for overhead cranes, hoists, monorails, and industrial electrification applications.
Available product families include:
SAF-T-BAR Series T, C, J and H conductor systems provide enclosed conductor bar solutions for a wide range of crane electrification applications. Available configurations include 65A to 1,500A systems depending on series and application requirements.
Insul-8 product families include:
- Safe-Lec 2
- Hevi-Bar I
- Hevi-Bar II (available with Dura-Coat corrosion-resistant finish)
- 8-Bar
- Cluster Bar
- Side Contact 8-Bar
These systems are available in multiple configurations and current ratings, including approximately 40A to 1,500A depending on product series.
Wampfler Conductor Bar Systems
Wampfler conductor bar solutions include:
- 0811
- 0812
- 0813
- 0815
- 0831
- 0842 BoxLine
These systems support applications ranging from standard industrial crane installations through specialized heavy-duty crane environments.
Vahle KBH and KSL conductor bar systems provide contact-protected electrification solutions for applications where space, safety, and reliable power transfer are key considerations.
Duct-O-Bar product families include:
- Figure Eight
- Heated Figure Eight
- Side Contact
- Totally Enclosed Figure Eight
- HD Series
Available configurations support a range of industrial crane electrification applications with product ratings dependent on system design.
What is a Festoon System?
A festoon system (also known as a cable festoon system) is a cable management system that supplies electrical power, control signals, and other services to moving overhead cranes, hoists, monorails, and industrial equipment. Cables and hoses are suspended from a series of trolleys that travel along a C-Track, I-beam, square rail, or wire rope system as the equipment moves.
As the crane travels, the cable loops between the trolleys expand and contract in a controlled manner, keeping cables organized, properly supported, and protected throughout the equipment's travel cycle.
How Does a Festoon System Work?
A festoon system carries flexible power cables, control cables, communication cables, and, where required, pneumatic hoses between a fixed power source and moving equipment.
As the crane bridge, trolley, or hoist moves, the festoon trolleys roll along the supporting track while the cable loops open and close smoothly. This allows electrical power and other services to travel with the equipment without placing excessive strain on the cables.
Unlike conductor bar systems, which distribute electrical power—and in some applications control or communication signals—festoon systems can support multiple cable and hose types within the same system. This makes them well suited for applications requiring electrical power, control signals and even pneumatic or hydraulic flexible services.
When Should You Specify a Festoon System?
Festoon systems are commonly selected when an application requires:
Multiple Cable and Hose Types
Festoon systems can manage combinations of power cables, control cables, communication cables, fibre optic cables, and pneumatic hoses within a single cable management system. This makes them suitable for applications where multiple services must travel together with the moving equipment.
Flexible or Evolving Installations
Festoon systems are often selected for applications where equipment layouts may change, future modifications are anticipated, or the installation may need to be expanded more easily than a permanently mounted conductor bar system.
Moderate Travel Speeds and Short-to-Medium Runways and Bridge applications
Standard C-Track festoon systems are commonly used for moderate crane travel speeds and short-to-medium runway lengths or common bridge motions. Maximum travel speeds, cable weights, and runway lengths vary depending on the manufacturer, trolley design, cable package, and operating conditions.
Cost-Effective Electrification
For many short and medium runway applications, festoon systems can provide a lower initial installation cost than conductor bar systems while delivering reliable cable management and electrical power distribution.
Existing I-Beam Runways
Where an existing I-beam is available, I-beam festoon systems can often utilize the crane structure itself as the trolley track, reducing the need for additional support hardware.
Light-Duty Applications
Wire-supported and stretch-wire festoon systems are commonly used for lighter-duty applications with shorter travel distances where a full C-Track installation is not required.
Common Types of Festoon Systems
Different festoon systems are designed to meet varying cable loads, travel speeds, and operating environments.
Wire Rope and Stretch Wire Festoon Systems
Wire-supported systems provide an economical cable management solution for lighter-duty equipment and shorter travel distances where a rigid track system may not be necessary.
C-Track Festoon Systems
C-Track systems are the most widely used configuration for overhead cranes and monorails. They provide smooth trolley travel, excellent cable support, and are available in standard-duty and heavy-duty designs.
Square Track Festoon Systems
Square track systems provide additional stability in applications requiring higher cable loads or greater resistance to trolley movement. They are also available through curves, common in monorail applications.
I-Beam Festoon Systems
I-beam festoon systems use the crane's existing beam as the trolley track, making them a practical solution for many retrofit and existing crane installations.
Festoon Systems Available from Crane-Controls.com
Crane-Controls.com supplies festoon systems and components from leading industrial manufacturers, including:
- Heavy-Duty C-Track
- Standard-Duty C-Track
- Square Track
- I-Beam Systems
- Stretch Wire Systems
- Festoon Trolleys and Accessories
- Heavy-Duty C-Track
- Standard-Duty C-Track
- Aluma-Track Systems
- I-Beam Systems
- Wire-Supported Systems
- C-Track Systems
- I-Beam Systems
- Wire Rope Kit Systems
- C-Rail Systems
- I-Beam Systems
Choosing Between Festoon and Conductor Bar
Both festoon systems and conductor bar systems provide reliable electrification for overhead cranes and material handling equipment, but they are designed for different applications.
Festoon systems are often selected when multiple cable types or pneumatic hoses must travel with the equipment, or when installation flexibility is an important consideration.
Conductor bar systems are commonly specified for permanent runway installations requiring continuous electrical power delivery over long travel distances or at higher operating speeds.
Festoon systems require storage length at the fixed end of the system that may not always be available.
Selecting the appropriate system depends on factors including runway length, travel speed, cable package, operating environment, maintenance requirements, and the services that must be delivered to the moving equipment.
What are Cable Reels?
Cable reels are spring-tensioned or motor-driven drum assemblies used to supply electrical power and control cables to moving overhead cranes, hoists, monorails, and other mobile industrial equipment. As the equipment travels, the reel automatically pays out and retrieves cable while maintaining controlled cable tension and orderly cable storage throughout the travel cycle.
Unlike a festoon system, which supports cables in a series of moving loops suspended from trolleys, a cable reel stores the cable on a rotating drum. This provides a compact, self-contained cable management solution that can be well suited to applications where available space is limited or where supporting track systems are impractical.
Cable reels may be mounted at one end of the runway, at the center of the runway or directly on the moving equipment, depending on the application, cable routing requirements, and equipment design.
How Do Cable Reels Work?
Cable reels automatically dispense cable as the crane, trolley, or hoist moves away from the power source and retrieve the cable as the equipment returns. The cable remains properly supported throughout the travel cycle while minimizing excessive slack and reducing mechanical strain on the cable.
Different cable reel mechanisms are designed to accommodate varying travel distances, cable weights, duty cycles, and operating conditions.
Lift Drag Cable Reels
Lift Drag cable reels use spring tension to pay out cable as the equipment moves away from the reel and automatically retrieve the cable as it returns. They are commonly used on vertical drops or for floor mounted equipment.
Retrieve Cable Reels
Retrieve cable reels use a motor-driven drum to actively wind the cable during retrieval, providing controlled cable management for floor mounted equipment
Stretch Cable Reels
Stretch cable reels use spring tension to compensate for cable movement across shorter travel distances where maintaining cable support is the primary objective.
Approximately 10% droop of a cable at mid length becomes a limitation for longer stretch cable reel applications.
When Should You Specify a Cable Reel?
Cable reels are commonly selected when an application requires:
Compact Cable Management
Because the cable is stored on a rotating drum rather than suspended in cable loops, cable reels provide a compact cable management solution that requires minimal supporting infrastructure.
Shorter Travel Applications
Cable reels are often used on shorter travel applications, including many jib cranes, hoists, monorails, and overhead cranes. Maximum travel distances depend on the reel design, cable type, operating conditions, and manufacturer specifications.
Controlled Cable Handling
Cable reels help maintain orderly cable storage while reducing excessive cable slack and minimizing cable wear during repetitive equipment movement.
Existing Equipment Retrofits
Cable reels can often be integrated into existing crane and hoist installations where adding conductor bar or festoon track systems may be impractical or unnecessary.
Applications Requiring a Simple Electrification Solution
For many crane applications, cable reels provide a straightforward method of supplying electrical power and control signals with relatively few moving components and minimal supporting hardware.
Cable Reels and Slip Ring Collectors
Rotating equipment such as jib cranes, rotating workstations, and turntables may also require slip ring collectors. Unlike cable reels, which manage moving cable during linear travel, slip ring collectors provide continuous electrical connection through a rotating joint, allowing equipment to rotate continuously without twisting the supply cable.
Although both products support moving electrical connections, they are designed for different types of equipment movement and are often used in complementary applications.
Cable Reel Configurations Available from Crane-Controls.com
Crane-Controls.com supplies cable reel systems and related products from leading industrial manufacturers.
Insul-8 Cable Reels
Available product families include:
These product lines include models designed for a range of travel distances, conductor counts, cable sizes, and application requirements. Refer to individual product specifications for model-specific ratings and performance characteristics.
Crane-Controls.com also supplies TER Slip Ring Collectors for rotating crane and industrial equipment applications, including:
- 10A Series
- 10A/30A Series
- 50A Series
These products provide continuous electrical transmission across rotating joints while preventing cable twisting during operation.
Choosing Between Cable Reels, Festoon Systems, and Conductor Bar
Each electrification method offers distinct advantages depending on the application.
- Cable reels are commonly selected where a compact cable management solution is preferred and travel distances are relatively short and cable droop is not a limitation.
- Festoon systems are well suited to applications requiring multiple flexible services—such as power cables, control cables, communication cables, or pneumatic and hydraulic hoses—to travel together with the equipment.
- Conductor bar systems are commonly specified for permanent crane runway installations requiring continuous electrical power over longer travel distances or at higher operating speeds for 3 phase power or limited control signals.
Selecting the appropriate system depends on factors including runway length, travel speed, cable package, operating environment, electrical requirements, maintenance objectives, and the overall crane design.
Conductor Bar vs. Festoon vs. Cable Reels — Quick Comparison
Selecting the correct crane electrification system depends on several factors, including runway length, travel speed, electrical requirements, operating environment, required services, and maintenance objectives.
The three most common approaches for supplying power and services to moving cranes and hoists are conductor bar systems, festoon systems, and cable reels. Each solution has advantages depending on the application.
Conductor Bar Systems
Best for:
- Permanent runway installations
- Higher current requirements
- Long travel distances
- Applications requiring consistent power delivery at higher travel speeds
- For 3 phase power or minimal control signals
Current capacity:
Available in a wide range of current ratings, from light-duty crane applications through heavy-duty industrial systems. Specific capacity depends on the manufacturer, conductor material, system design, and operating requirements.
Travel speed:
Suitable for a broad range of crane travel speeds, including high-speed applications where consistent electrical contact is required. Maximum performance depends on the conductor bar design, collector assembly, and operating conditions.
Runway length:
Suitable for both short workstation crane installations and long industrial crane runways. System selection depends on electrical requirements, expansion needs, environmental conditions, and manufacturer specifications.
Cable and hose support:
No — conductor bar systems are designed primarily for electrical power distribution. Certain systems may also support control or communication signals depending on the configuration, but they do not carry pneumatic or hydraulic hoses.
Installation:
Permanent installation requiring runway-mounted conductor sections and collector assemblies.
Maintenance:
Typically requires limited maintenance compared with systems using moving cable loops, although conductor surfaces, collector shoes, and mechanical components require periodic inspection.
Safety considerations:
Enclosed conductor bar systems house energized conductors within an insulated enclosure, helping reduce exposure to live electrical components when properly installed and maintained.
Festoon Systems
Best for:
- Applications requiring multiple cables or hoses
- Retrofit installations
- Moderate travel speeds
- Applications where flexible service routing is required
- Where storage length for stacked trolleys is not a limitation
Current capacity:
Determined by the cable selection, conductor size, duty cycle, and manufacturer design. Festoon systems can accommodate a wide range of electrical requirements depending on the cable package.
Travel speed:
Suitable for many crane and hoist applications with moderate travel speeds. Maximum speed depends on the track design, trolley configuration, cable weight, and operating conditions.
Runway length:
Used across a wide range of bridge lengths or moderate runway lengths. Suitable configurations depend on the support method, including C-Track, I-beam, square rail, and wire-supported systems.
Cable and hose support:
Festoon systems can support combinations of:
- Power cables
- Control cables
- Communication cables
- Fibre optic cables
- Pneumatic hoses
- Hydraulic hoses
- Other flexible services
Installation:
Requires a supporting track, I-beam, or wire rope system with moving trolley assemblies.
Maintenance:
Requires periodic inspection of cable condition, trolley movement, track condition, and supporting hardware.
Safety considerations:
Festoon systems provide controlled cable management. Electrical safety depends on the cable selection, installation method, grounding, protection, and overall crane electrical system design.
Cable Reels
Best for:
- Compact installations
- Shorter travel applications
- Jib cranes
- Hoists and equipment where a self-contained cable management solution is preferred
- 360 degree monorails
Current capacity:
Determined by the reel design, cable type, conductor size, duty cycle, and manufacturer specifications. Available configurations range from smaller control applications to larger power cable applications.
Travel speed:
Suitable for many crane and hoist applications. Performance depends on the reel mechanism, cable weight, retrieval system, and operating environment.
Runway length:
Commonly selected for shorter travel applications, although available travel distance depends on the reel design, cable package, and manufacturer.
Cable and hose support:
Standard cable reel configurations are designed primarily for electrical cables. Applications requiring multiple cable types or pneumatic services may be better suited to festoon systems.
Installation:
Provides a compact solution using a drum assembly to store and manage cable. Mounting location depends on the crane design and application requirements.
Maintenance:
Cable reels have fewer supporting components than festoon systems but require inspection of the drum mechanism, cable condition, and tensioning system.
Safety considerations:
Cable reel installations must meet applicable electrical and crane safety requirements based on the equipment design, cable selection, and installation method.
How to Choose the Right System for Your Crane
Step 1 — Determine Your Electrical Requirements
Begin by identifying the crane’s electrical requirements, including:
- motor and hoist load requirements
- control system requirements
- duty cycle
- conductor count
- voltage and current requirements
Higher current requirements, long travel distances, and demanding operating cycles often make conductor bar systems an attractive option. Festoon systems and cable reels can also support significant electrical loads when properly configured with appropriate cable sizes and ratings.
Step 2 — Evaluate Bridge / Runway Length and Equipment Movement
Bridge / Runway length is an important factor when selecting an electrification system.
- Cable reels are commonly selected where a compact cable management solution is preferred, particularly for shorter travel applications.
- Festoon systems are well suited for applications where cables, hoses, or multiple services must travel with the equipment.
- Conductor bar systems are commonly specified for permanent runway installations requiring continuous 3 phase electrical power distribution over longer travel distances.
The optimal solution depends on the complete application requirements rather than runway length alone.
Step 3 — Identify Cable, Hose, and Service Requirements
If the crane requires multiple services—including pneumatic hoses, control cables, communication cables, or other flexible connections—festoon systems are often the most suitable solution because they can support multiple service types within a single cable management system.
Conductor bar systems primarily distribute electrical power and may support control or communication signals depending on the system design.
Cable reels are typically used for electrical cable management where a compact drum-based solution is appropriate.
Step 4 — Assess the Operating Environment
Environmental conditions play an important role in electrification system selection.
Applications involving:
- outdoor exposure
- corrosive environments
- extreme temperatures
- moisture
- demanding industrial conditions
may require specialized configurations such as:
- weather-resistant conductor systems
- corrosion-resistant materials
- stainless steel components
- heated systems
- protective coatings
Festoon systems and cable reels are also available in configurations designed for outdoor and industrial environments. Selection should consider the specific operating conditions and manufacturer recommendations.
Step 5 — Consider Travel Speed and Duty Cycle
Travel speed, acceleration, duty cycle, and frequency of operation all influence system selection.
Higher-speed crane applications often favor conductor bar systems because they provide continuous electrical contact without moving cable loops. Festoon systems and cable reels may also be suitable for higher-performance applications when properly specified for the operating requirements.
Compliance Requirements for US Crane Electrification
Overhead crane and hoist electrification systems installed in US general industry applications must be designed, installed, and maintained in accordance with applicable safety requirements, including OSHA regulations, industry standards, and manufacturer specifications.
Relevant standards and references may include:
- OSHA 29 CFR 1910.179 — Overhead and gantry cranes
- CMAA Specification No. 70 — Top-running bridge and gantry cranes
- CMAA Specification No. 74 — Under-running cranes and monorail systems
- ASME B30 series standards — Crane, hoist, monorail, and lifting equipment safety requirements
Conductor bar installations must address applicable requirements related to conductor guarding, insulation, accessibility, and safe installation practices.
Pendant control systems connected through festoon or cable reel systems must comply with applicable crane electrical requirements, including voltage limitations and protection requirements where applicable.
Crane-Controls.com Application Support
Crane-Controls.com provides product selection assistance for conductor bar systems, festoon systems, cable reels, and related crane electrification components.
Crane-Controls.com’s technical team can help evaluate application requirements including:
- crane type
- runway configuration
- electrical requirements
- cable and hose needs
- operating environment
- duty cycle
The appropriate electrification solution depends on the specific crane application, installation conditions, applicable safety requirements, and manufacturer recommendations.
Note: This comparison is intended as general application guidance. Final system selection should be based on the crane design, operating conditions, electrical requirements, applicable codes and standards, and the recommendations of qualified engineering and equipment specialists.
