How to Choose a Pendant Control Station for Your Overhead Crane

What Is a Pendant Control Station?

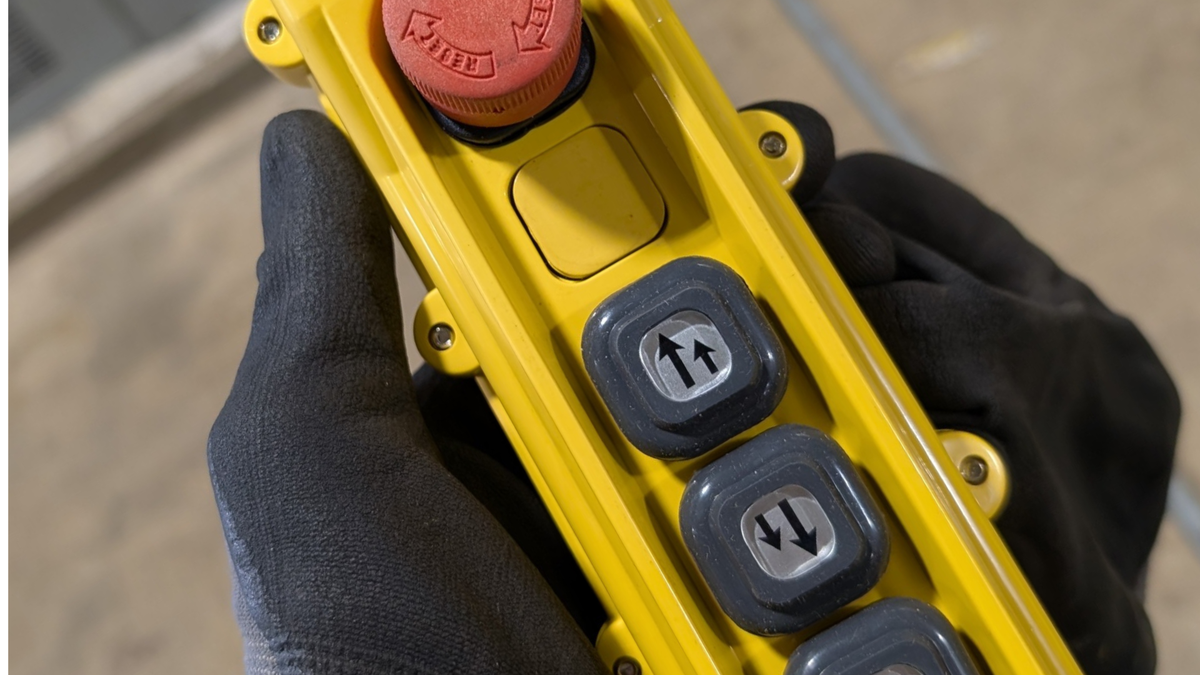

Pendant control stations are the pushbutton control station an operator uses to command bridge travel, trolley travel, hoist motion, and auxiliary functions from the floor. The pendant hangs within reach of the operator's position on the floor adjacent to the load, connected back to the crane's control panel by a support cable (often part of a festoon system) and a multi-conductor control cable. Crane-Controls.com offers pendant control stations across several product lines — TER, Insul-8, Duct-O-Wire, and Crane-Controls' own house brand — with configurations ranging from compact two-button stations to high-button-count stations with single-, two-, and three-speed control options.

Direct vs. Indirect Control: Two Ways a Pendant Switches Motor Current

Pendant control stations can generally be divided into two control types, and the distinction changes which specs in this guide apply. Indirect control is the default assumed through the rest of this guide: the pendant's pushbuttons are low-current pilot-duty contacts that signal relays or motor contactors mounted in the crane's control panel, and those relays or contactors do the actual work of switching the motor. This is why a control transformer (Step 6, below) and a pilot-duty contact rating exist in the first place — the pendant itself never carries more than a small fraction of the motor's actual current.

Direct control works differently: for small motors, the pendant's own pushbutton contacts are rated to switch the motor's full current directly, with no relays, contactors, or control transformer in between. Crane-Controls.com's example is Insul-8's 20 Series (part 35244, model COB213), a two-button station rated for direct control of single-phase motors up to 1HP at 120VAC or 2HP at 220VAC, with switch contacts rated to 25A resistive. Removing the relays and contactors makes for a simpler, lower-cost control setup, but it only works within the motor sizes the pendant's own contacts are rated for — it doesn't scale to larger motors the way indirect control does.

The distinction matters for OSHA compliance specifically because of how each type gets its voltage. An indirect-control pendant's voltage is set by whatever control transformer feeds it, engineered down to a safe level independent of the motor's own voltage. A direct-control pendant has no transformer in the circuit, so the voltage at the pushbuttons is the motor's actual line voltage. That puts OSHA's pendant voltage limit — covered next — directly in play: the 20 Series' 120VAC/1HP configuration clears it, but its 220VAC/2HP configuration would exceed the 150-volt AC ceiling on a crane covered by 1910.179.

Because most crane motions run larger motors than a pendant's contacts can safely switch directly, indirect control is what the remaining steps in this guide are built around. Direct control is worth considering specifically for small, single-phase auxiliary motors — where eliminating the relays, contactors, and transformer is a genuine simplification rather than a compromise.

Why Pendant Voltage Is a Safety-Critical Spec

OSHA's overhead and gantry crane standard, 29 CFR 1910.179(g)(1), sets specific electrical requirements for pendant control stations — and the voltage limit is one many buyers don't think to check until an inspector does.

The standard allows a crane's control circuit to run at up to 600 volts AC or DC (1910.179(g)(1)(ii)). But the pendant itself — the box the operator is physically holding — is held to a much tighter limit: “the voltage at pendant push-buttons shall not exceed 150 volts for a.c. and 300 volts for d.c.” (1910.179(g)(1)(iii)). That difference is why crane control systems commonly use a lower-voltage control circuit for the pendant. Where the crane's control-circuit voltage exceeds the OSHA pendant limit, the control system must reduce the voltage so that the voltage at the pendant push-buttons remains within the applicable limit — OSHA has confirmed this directly: “if the voltage can be safely reduced so as never to exceed the maximum allowable voltage, then it would be considered acceptable” (OSHA Standard Interpretation, March 4, 1991). In practice, most pendant stations on the market run well under the 150-volt ceiling (The Crane-Controls.com B-81, for example, is rated 5A at 120VAC).

Two related requirements round out the standard: the pendant's cable must be supported so the electrical conductors aren't carrying the mechanical strain of the box's weight (1910.179(g)(1)(iv)), and the enclosure itself must be “constructed to prevent electrical shock and shall be clearly marked for identification of functions” (1910.179(g)(1)(v)). Both requirements are addressed directly in the step-by-step process below.

How to Choose a Pendant Control Station

Specifying a pendant station comes down to seven decisions.

Step 1 — Map Your Crane's Motions and Button Count

Start by listing every motion the operator needs to control independently: bridge forward/reverse, trolley forward/reverse, main hoist up/down, and any auxiliary hoist or accessory motions. Each direction of each motion typically needs its own button — two-speed control adds a second detent on that same button rather than a second button (three-speed control adds a third detent; see Step 2), so a simple single-hoist crane might need as few as 2 buttons, while a crane with a main and auxiliary hoist, multi-speed bridge and trolley travel, and a horn, E-Stop, or light circuit can easily reach 10-12. Across the Crane-Controls.com range, configurations extend from compact 2-button stations to 20-button stations, depending on the product line.

Step 2 — Decide Single-, Two-, or Three-Speed Control per Motion

Single-speed control is simple on/off — the motion runs at one speed whenever the button is pressed. Two-speed control provides a lower-speed command in addition to the full-speed command, giving the control system a way to provide more controlled positioning; it is commonly used on hoists and travel motions where operators need greater control when positioning a load. Three-speed control provides an additional speed command where the application calls for more graduated control. Speed control doesn't have to be uniform across a station — it's common to pair two-speed hoist control with single-speed bridge and trolley travel on the same pendant. When a VFD is used, the pendant's speed commands are interpreted by the drive's control logic rather than directly selecting motor speeds. The required pushbutton/contact configuration should therefore be matched to the VFD's control inputs and programming.

Step 3 — Choose Momentary vs. Maintained Contacts

Momentary pushbuttons are spring-return devices that remain actuated only while the operator applies pressure. When released, the pushbutton returns to the off position — and for pendant stations on cranes covered by 1910.179, this isn't just common design practice: OSHA 1910.179(g)(3)(vii) directly requires that “pushbuttons in pendant stations shall return to the 'off' position when pressure is released by the crane operator.” Maintained contacts stay engaged after a single press and require a separate action to release. Maintained contacts may be appropriate for selected non-motion functions or other control functions where the system is specifically designed for them; motion pushbuttons on cranes covered by 1910.179 must satisfy the OSHA return-to-off requirement.

Step 4 — Specify Safety Features: E-Stop and Interlocks

OSHA 1910.179(g)(5)(iii) requires a floor-operated crane to have a disconnect arrangement and gives three alternative ways to implement it: a nonconductive rope attached to the main disconnect switch, an undervoltage trip on the main circuit breaker operated by an emergency-stop button in the pendant station, or a main-line contactor operated by a switch or pushbutton in the pendant station. Where the crane's disconnect and control architecture calls for that emergency-stop function to live at the pendant, specify an appropriate E-stop device and reset arrangement — but the applicable disconnect requirements should be evaluated as part of the complete crane control system rather than assumed for the pendant in isolation. Separately, for opposing motions (e.g., bridge forward and bridge reverse), specify electrical or mechanical interlocking between the contact elements where the control design calls for it — interlocking physically or electrically prevents both directions from energizing at once. TER's Alpha series, for example, is built with electrically interlocked single-speed contact pairs while NPA series is built with mechanically interlocked contact pairs for this purpose.

Step 5 — Match the Enclosure Rating to the Environment

Pendant stations may be specified using NEMA enclosure types, IP ratings, or both, depending on the product and application — for environments ranging from indoor/light-industrial to washdown, outdoor, or corrosive/severe-duty. Don't default to the cheapest option if the application calls for more: Duct-O-Wire offers pendant series with enclosure configurations spanning general-purpose environments through washdown and severe-duty conditions (its BW Series is currently listed at NEMA 1, 3, 3R, 4, and 4X, its RPB Series — steel-reinforced nitrile rubber, tongue-and-groove cover — at NEMA 1, 3, 4, and 12, and its SKYP Series is built specifically for severe-environment applications), and Insul-8's 80 Series carries an IP65 rating on its standard enclosures. Confirm the exact NEMA/IP rating for the specific series and model against current manufacturer documentation before finalizing a spec — enclosure ratings are set at the model level and can change between product revisions. Hazardous or classified locations need separate verification beyond NEMA or IP rating — a standard enclosure rating doesn't by itself address the requirements of a classified location. Where the crane operates in a Class I, II, or III classified area, confirm the pendant, cable, and connectors carry the required hazardous-location listing before finalizing a spec.

Step 6 — Confirm Pendant Voltage and Transformer Sizing

Verify that the pendant circuit voltage stays under OSHA's 150-volt AC / 300-volt DC ceiling (see “Why Pendant Voltage Is a Safety-Critical Spec” above), and confirm the control transformer feeding the pendant has sufficient VA capacity for the pendant and the other connected control-circuit loads, not just its nameplate voltage. This is a panel-design detail as much as a pendant-selection one, but it's particularly worth checking on higher-function pendant configurations, where the number and type of connected control devices — not simply the button count — can affect the control-transformer load. This step applies to indirect-control pendants; a direct-control pendant (see above) has no control transformer to size.

Step 7 — Plan Cable Length, Strain Relief, and Support

Where a suspended pushbutton station uses multiple-conductor cable, OSHA 1910.179(g)(1)(iv) requires that the station “be supported in some satisfactory manner that will protect the electrical conductors against strain.” In practice, this typically means a separate support cable or festoon trolley carries the pendant's weight rather than the control cable itself. Some pendant cables incorporate an integrated messenger or support element into the cable assembly, while other installations use a separate support cable. Confirm the pendant's cord grip or cable entry is sized for the number of conductors your button count requires (Duct-O-Wire's L Series, for example, uses a multi-step cord grip accepting 4 to 24 conductor round cable), and set the support height so the pendant hangs at a safe, ergonomic operating position — not so high it strains reach, and not so low it drags or catches on the load.

Terminology

• Direct Control — a pendant configuration where the pushbutton contacts switch the motor's full current directly, without relays, contactors, or a control transformer; limited to the motor sizes the contacts are rated for.
• Indirect Control — a pendant configuration where the pushbuttons are low-current pilot-duty contacts that signal relays or contactors, which perform the actual motor switching; the default for most crane pendant stations.
• Contact Element / Contact Block — the internal switch mechanism a pushbutton actuates; often described by configuration (e.g., “2 x 1-speed contact elements”).
• Momentary vs. Maintained — momentary contacts release when the button is released; maintained contacts stay engaged until separately reset.
• Pilot Duty Rating — a contact's rated make/break capacity for switching a control-circuit load (e.g., a relay or contactor coil) rather than a full motor load directly — applies to indirect-control contacts.
• NEMA vs. IP Rating — NEMA (North American) and IP (international) are two separate enclosure classification systems for rating how well an enclosure resists dust, water, and other environmental intrusion. NEMA and IP ratings are different classification systems and should not be treated as direct equivalents. A spec sheet may list either or both
• Strain Relief / Cord Grip — the hardware at the cable entry point that clamps the cable jacket so pulling or vibration doesn't transmit force to the internal wire terminations.
• Electrical/Mechanical Interlock — a design feature that prevents two opposing contacts (e.g., bridge forward and bridge reverse) from being energized at the same time.
• Control Transformer — steps the crane panel's control-circuit voltage down to a lower voltage before it reaches the pendant, keeping the pendant within OSHA's 150V AC / 300V DC limit — used on indirect-control pendants.

Matching to a Series

Crane-Controls.com supports three third-party pendant lines plus a house brand. Each is built around a different balance of customization, environmental range, and price point. Insul-8 pendant control stations are stocked in 20, 60, and 80 Series configurations; the table below covers all three: the 80 Series (indirect control — pilot-duty contacts signaling relays/contactors), the 20 Series (Insul-8's direct-control line — see “Direct vs. Indirect Control” above), and the 60 Series (manufacturer-rated at 5A with no HP spec published, which points toward pilot-duty use without being explicitly classified as such).

Pendant Control Stations Available from Crane-Controls.com

Crane-Controls.com stocks pendant control stations from TER, Insul-8, and Duct-O-Wire, plus its own house-brand line, covering light-duty single-motion applications through severe-environment, high-button-count configurations.

• TER Pendant Control Stations
• Insul-8 Pendant Control Stations
• Duct-O-Wire Pendant Control Stations
• Crane-Controls Pendants

Application Support

Crane-Controls.com's technical support team can help match a pendant configuration to your crane's motion count, duty cycle, and operating environment, and help verify the pendant's specifications against applicable OSHA and electrical requirements for the intended installation. Overall compliance depends on the complete crane and control system, the installation, and the governing jurisdiction — a pendant specification alone does not determine it.
