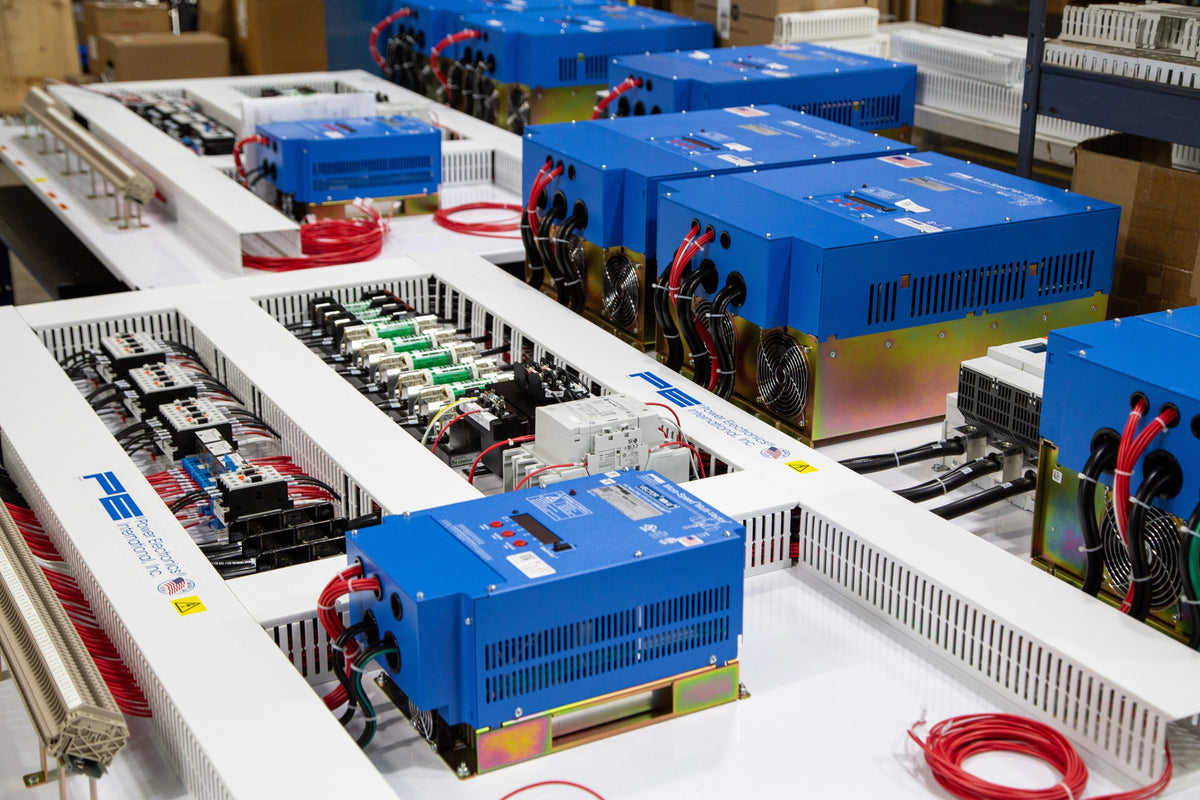

How to Select a VFD for an Overhead Crane

A VFD converts incoming AC power to DC and back to AC at a controlled frequency, giving a crane motor continuous speed control instead of the fixed on/off (or preset multi-speed) operation a contactor or soft starter provides. That capability has made VFDs a common choice for modern crane bridge, trolley, and hoist motions — but not every VFD is interchangeable with every other, and on a hoist motion specifically, the wrong choice creates a real safety gap rather than just a performance shortfall. This guide walks through the decisions that determine drive selection: control architecture, sizing, anti-sway needs, communication requirements, and the NEC provisions that follow from the choice.

Why VFD Selection Carries Different Stakes on a Hoist

Not every VFD selection decision carries the same consequences. For bridge and trolley travel, an open-loop drive — one that estimates motor speed and position from a mathematical model of the motor rather than measuring it directly — is a common and generally suitable approach, subject to the drive manufacturer's application requirements and the overall crane control design. A brief control inaccuracy on a travel motion is an inconvenience, not a hazard, and the load isn't relying on the drive to hold position against gravity between commands.

Hoist motion is different. An open-loop drive's estimate can fail under real-world conditions in ways a physical sensor reading can't. Power Electronics' own product documentation is explicit and consistent on this point across its open-loop hoist models: open-loop hoist models are specified for use only on hoists with an internal mechanical load brake (such as a Weston-style friction/ratchet design) or a self-locking worm gear design — a gear arrangement that's inherently non-back driveable, providing the same kind of independent physical backup by different mechanical means. Where a hoist has neither (a “no-load-brake” hoist, in the industry's own term), the drive's own feedback is the only thing standing between the motor and an uncontrolled load, and that calls for closed-loop (vector) control with direct encoder feedback rather than an open-loop estimate.

How to Select a VFD

Specifying a crane VFD comes down to seven decisions.

Step 1 — Identify the Motion the Drive Will Control

Bridge travel, trolley travel, and hoist motion don't carry the same selection stakes, as covered above. Make this determination first — it decides whether Step 2's open-loop option is even on the table.

Step 2 — Decide Open-Loop or Closed-Loop Control

For bridge and trolley travel, open-loop control is standard practice — the drive's motor-model estimate is accurate enough for travel positioning, and a brief inaccuracy has no safety consequence. For hoist motion, this is the safety-critical decision covered above: an open-loop drive should only be paired with a hoist that has a mechanical load brake or a self-locking worm gear design providing an independent backup. A no-load-brake hoist calls for closed-loop control with direct encoder feedback instead.

Step 3 — Size the Drive to the Motor's HP and Duty Cycle

The motor's nameplate horsepower is the starting point, but crane duty cycles run harder than the continuous-duty applications a general-purpose drive's baseline rating may assume — frequent starts, reversals, and sustained operation at low speed all generate more heat than steady running at rated speed. Confirm the drive's rating and cooling accommodate crane duty specifically, not just motor nameplate HP. Power Electronics' own product documentation references CMAA duty classification directly (its Smart-Move hoist line, for example, is rated for CMAA Classes A–D), so confirming the drive against the crane's CMAA or ASME HST duty class — not just motor nameplate HP — is worth checking alongside starts/reversals and speed range.

Step 4 — Consider Anti-Sway Control for Travel Motions

Bridge and trolley motions can benefit from anti-sway control, which manages acceleration and deceleration profiles to reduce load swing during travel. Power Electronics offers this as PE SAM, available in two configurations depending on which drives are in the system: an open-loop version (SAM 1) paired with a Micro-Speed MX-Ultra drive, and a closed-loop version (SAM 2) that pairs MX-Ultra with MV-Ultra for more demanding anti-sway performance. Anti-sway control primarily addresses travel motion; confirm with Power Electronics' current documentation exactly how a SAM 2 system's hoist and travel drives coordinate before assuming the hoist side is entirely unaffected.

Step 5 — Plan for Communication and Programming Needs

Larger or more automated installations may call for a drive with web-based programming and EtherNet/IP communication, letting the drive integrate with a plant network or be configured remotely rather than only through a local keypad. Multi-drive installations can also make use of GANG-SET, a trademarked Micro-Speed configuration feature that replicates parameters across drives quickly — more useful on an installation with several identical drives than on a single-crane retrofit.

Step 6 — Account for NEC Conductor Sizing

A VFD is classified as power conversion equipment under NEC Article 430, Part X (430.120–430.131), because it actually converts AC to DC and back to AC — a different classification than the standard motor branch-circuit provisions that apply to a contactor or soft starter. In practice, this means the conductors supplying the drive (430.122(A)) are sized at 125% of the drive's rated input current, while conductors between the drive and the motor (430.122(B)) are sized at 125% of the motor's full-load current instead, unless the drive is listed and marked for output motor conductor protection — in which case the applicable requirement is generally understood to be the larger of that 125% figure or the minimum conductor size marked on the drive itself, though this specific exception wording should be confirmed against the current NEC text before citing it in final copy. Also worth verifying: NEC 430.126 addresses motor overtemperature protection specifically for adjustable-speed drive applications, since a motor's shaft-mounted cooling fan spins slower at reduced VFD speed and can leave the motor with less cooling than its nameplate rating assumes. None of this affects which drive to select, but it does affect the panel and conductor sizing that follows from the choice, so it's worth confirming with the installing electrical contractor early rather than after the drive is already specified.

Step 7 — Consider Replacement and Legacy Compatibility

If the drive is replacing an existing one rather than going into a new installation, check whether the current drive is a discontinued legacy model before assuming an identical replacement is available. Power Electronics positions Micro-Speed MX-Ultra and MV-Ultra as the current-generation upgrade path from its older MX and Multi-Vector lines respectively. Confirm the specific replacement model, mounting dimensions, wiring, and programming requirements against current manufacturer documentation before treating an upgrade as a drop-in replacement — don't assume footprint or wiring compatibility without checking.

Terminology

• Open-Loop Control — a VFD control method that estimates motor speed and position from a model of the motor's electrical characteristics, without direct measurement.
• Closed-Loop Vector Control — the control architecture used by drives like Power Electronics' MV-Ultra, which uses an encoder to directly measure motor speed and position rather than estimating it.
• Load Brake — a mechanical brake (commonly a Weston-style friction-plate-and-ratchet design) built into a hoist to physically prevent a suspended load from falling, independent of the drive or electrical system. A self-locking worm gear design serves the same backup function by different mechanical means.
• No-Load-Brake Hoist — a hoist with neither a mechanical load brake nor a self-locking worm gear backing up the drive; the drive's own control and feedback are what hold and control the load.
• Anti-Sway Control — a VFD feature (e.g., Power Electronics' PE SAM) that manages bridge/trolley acceleration and deceleration profiles to reduce load swing during travel.
• Power Conversion Equipment — equipment (like a VFD) that converts incoming AC power to DC and back to AC at a different, controlled frequency; the technical distinction that puts VFDs under NEC Article 430, Part X rather than standard motor branch-circuit provisions.
• GANG-SET — a trademarked Micro-Speed feature for replicating drive configuration parameters quickly across multiple units.
• Duty Cycle — the pattern of starts, stops, reversals, and running time a motor or drive experiences in service; crane duty cycles are typically more demanding than continuous-duty industrial applications, and are often expressed against a CMAA or ASME HST duty classification.

Frequently Asked Questions

Can I use an open-loop VFD on a crane hoist?

Only if the hoist has a mechanical load brake or a self-locking worm gear design providing an independent backup. Power Electronics' own product documentation is consistent on this across its open-loop hoist models: open-loop control — which estimates rather than directly measures motor speed and position — shouldn't be relied on for hoist motions without one of those two physical backups. A no-load-brake hoist calls for closed-loop control with direct encoder feedback instead.

What's the difference between Micro-Speed MX-Ultra and MV-Ultra?

MX-Ultra is open-loop, spanning 1–600HP, with web-based programming, EtherNet/IP communication, and PE SAM anti-sway control — suited to bridge and trolley travel, or hoist motions on hoists with a mechanical load brake or self-locking worm gear design. MV-Ultra is closed-loop with direct encoder feedback, spanning 1–300HP+, built specifically for no-load-brake hoist applications, with functions like Brake Test, Safety Start, Check-Load, and Multi-Float.

Does a VFD need different conductor sizing than a standard motor circuit?

Yes. Because a VFD converts power rather than switching it directly, NEC classifies it as power conversion equipment under Article 430, Part X. Conductors supplying the drive are sized at 125% of the drive's rated input current (430.122(A)); conductors between the drive and motor are sized at 125% of the motor's full-load current instead (430.122(B)), unless the drive is listed and marked for output motor conductor protection, in which case a different sizing rule applies — confirm the exact current requirement against the applicable NEC edition before finalizing conductor sizing.

Do I need anti-sway control?

It depends on the application. Anti-sway control manages bridge/trolley acceleration and deceleration to reduce load swing during travel — valuable where precise load positioning matters or travel distances are long, less critical on short, slow-travel applications.

Can I replace an old drive with a newer model without redesigning the panel?

Sometimes, but don't assume it. Power Electronics positions MX-Ultra and MV-Ultra as the current-generation upgrade path from its older MX and Multi-Vector lines, but that's an upgrade-path relationship, not a confirmed guarantee of identical mounting or wiring. Confirm this against the specific models involved rather than assuming it applies universally.

Matching to a Line

Power Electronics' crane-specific VFD lines span a wide HP and control-architecture range.

Power Electronics Motor Controls Available from Crane-Controls.com

Crane-Controls.com features the Power Electronics motor control line, purpose-built for crane and hoist duty rather than adapted from general industrial drives.

• Smart-Move VFDs — open-loop, compact, 0.5–3HP, for light-duty bridge/trolley/hoist applications.
• Micro-Speed CX VFDs — open-loop, 1–20HP, in current production. Travel-preset (CXR) and hoist-preset (CXR-H) configurations; larger requirements are served by Micro-Speed MX-Ultra, which is also the direct upsell path for anyone whose search or existing installation points to a legacy CX rating above 20HP.
• Micro-Speed MX-Ultra VFDs — open-loop, 1–600HP, web-based programming, EtherNet/IP, anti-sway control.
• Micro-Speed MV-Ultra VFDs — closed-loop vector control, 1–300HP+, encoder feedback, for no-load-brake hoist applications.
• Multi-Vector (legacy) — closed-loop, no-load-brake hoist drive. Power Electronics positions MV-Ultra as the upsell path from Multi-Vector — the same pattern as CX to MX-Ultra. Kept available with limited availability for customers matching an existing installation by part number.
• Panel Accessories — supporting components for VFD installations.

Application Support

Crane-Controls.com's technical support team can help match a VFD's control architecture, HP rating, and feature set to your crane's motion requirements and duty cycle. Systems can be specified to support installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards. Final electrical design and code compliance for a complete installation should be confirmed by the installing electrical contractor or engineer of record for the specific jurisdiction.
