399340: 100 Amp Ground Collector With Deflector (Right)

399340: 100 Amp Ground Collector With Deflector (Right)

The Safe-Lec 2® series by Insul-8 is the new standard in the overhead crane, monorail, and material handling electrification industry.

Safe-Lec 2® collectors ensure positive tracking due to its v-contact. The collectors accurately track the conductor bar groove through its wide range of motion, allowing for the shoe to make continuous, superior conductivity with the rail.

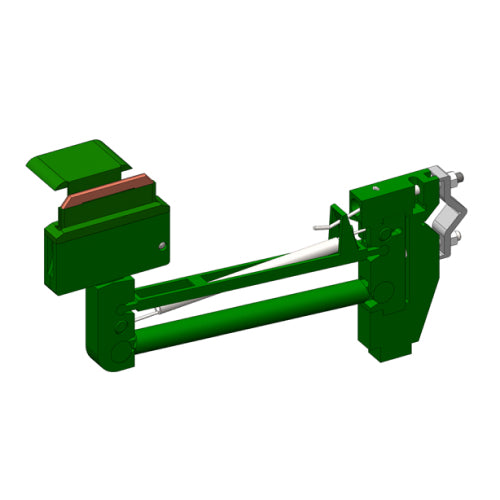

This is a 100 Amp ground collector (green) with a right deflector. Deflectors prevent the ground collector from coming in contact with adjacent phase collectors.

There is a collector shoe shunt wire that is imbedded within the arm of the collector. There is incoming cable that is connected to the terminal lug located at the collectors’ base.

<p><span style="text-decoration: underline;">Safe-Lec 2® Features:</span></p><ul> <li>IP2 "finger safe” operation; no live parts exposed</li> <li>Bolted Splice that Provides Durability and Longevity</li> <li>Easy System Configuration</li> <li>Positive Tracking</li> <li>Versatile covers</li></ul><p><span style="text-decoration: underline;"></span></p>

<p><span style="text-decoration: underline;">Technical Specifications:</span></p><ul> <li><span style="font-weight: bold;">Curve</span>: 60” min</li> <li><span style="font-weight: bold;">Max Speed</span>: 1,200 feet per minute (365.8meters/minute)</li> <li><span style="font-weight: bold;">Current Capacity</span>: 100 Amps</li> <li><span style="font-weight: bold;">Weight</span>: 1.80lbs (0.82kg)</li></ul>Refer to this <i><a href="https://www.conductix.ca/en/products/conductor-bar-systems">page</a></i> for installation information.
