C05P: Cable Trolley With Plastic Saddle

Crane-Controls.com
$15.65 USD

Secure Payment

Customer Service

Fast Shipping

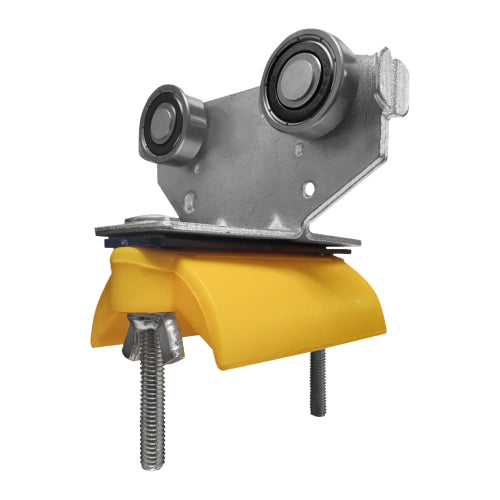

The C05P is a cable trolley with a plastic saddle for Crane-Controls.com's own-brand C-Rail festoon system — a device that moves along a cable or wire rope, providing support and guidance while minimizing friction and wear on the cable.

C05P is a carrier-style trolley: it rides the C-rail track and supports the cable as the crane moves. It's paired with the C06 tow trolley, which is mechanically pulled by the crane's motion to draw the cable loop along — a festoon run typically uses one C06 tow trolley alongside several C05P carrier trolleys like this one. (C016T, C025T, and C036T are tow trolleys built for round-cable applications elsewhere in the C-Rail line and aren't compatible with C05P.) Saddle-material variants are also available: C05S (steel saddle) and C05SS (304 stainless steel).

  • Rides the C-rail track — moves along a cable or wire rope, providing support and guidance while minimizing friction and wear on the cable.
  • Plastic saddle — the cradle that carries the cable is plastic,reducing wear on the cable jacket compared to a baremetal saddle.
  • Carrier-style trolley — supports and guides the cable along the track; not a tow trolley (see C06, the tow trolley used with this system, for the component that's mechanically pulled to draw the cable loop).
  • Saddle-material options — also available with a steel saddle (C05S) or in 304 stainless steel (C05SS) for corrosive or washdown environments.
  • Part of a broader C-Rail hardware set — pairs with the C01 rail, C02 track support bracket, C03 end clamp, and C04 track coupler.
Specification Value
Function Carrier trolley — rides the C-rail track and supports the cable
Saddle material Plastic
Compatible rail Crane-Controls.com C01 series C-Rail
Related components C01 (C-Rail), C02 (Track Support Bracket), C03 (End Clamp), C04 (Track Coupler), C06 (Tow Trolley)
Sibling variants C05S (steel saddle), C05SS (304 stainless steel)

Crane-Controls.com's technical support team can help plan a C-Rail festoon system — rail, support brackets, end clamps, couplers, and the right mix of carrier and tow trolleys — for your crane's travel distance and cable type. Systems can be specified to support installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards. Final electrical design and code compliance for a complete installation should be confirmed by the installing electrical contractor or engineer of record for the specific jurisdiction.

Contact: +1 888-822-2024 · info@crane-controls.com
