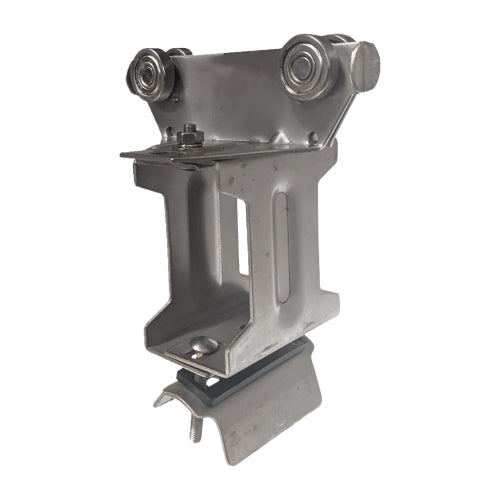

The C06 is Crane-Controls.com’s tow trolley for C-Rail cable trolley systems, built to pair with the C05P cable trolley with plastic saddle or the C05S cable trolley with steel saddle. As the crane bridge or trolley travels, the C06 is mechanically pulled along the C-Rail track, drawing the cable loop carried by the cable trolleys along with it so festoon cable feeds and retracts without binding or dragging. It’s designed for flat-cable C-Rail systems only — for round-cable applications, use C016T, C025T, or C036T instead.
| Specification | Value |
|---|---|
| Function | Tow trolley — mechanically pulled along the C-Rail track by crane motion, towing the cable loop |
| Compatible System | C-Rail (flat-cable) festoon systems only |
| Pairs With | C05P (cable trolley with plastic saddle), C05S (cable trolley with steel saddle) |
| Load Capacity | 20 kg (44 lb) |
| Dimensions (L x W x H) | 125 x 104 x 157.2 mm (4.92 x 4.09 x 6.19 in) |
| Weight | 0.78 kg (1.72 lb) |
| Related Components | C01 (C-Rail), C02 (Track Support Bracket), C03 (End Clamp), C04 (Track Coupler) |
