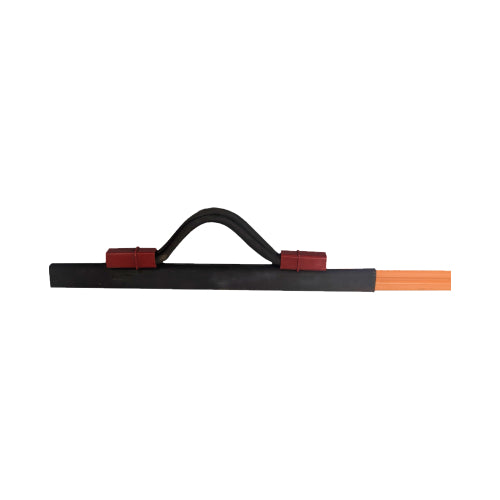

CA110XG-2: 110 Amp Expansion Gap and Joint Kit Assembly
The CA110XG-2 is the perfect solution for 110-amp conductor bars. This kit can accommodate gaps up to two inches making it the perfect fix for copper systems and electrification systems in need of gap bridges.
*Refer to the details below for further information regarding factor specifications.
*Refer to the details below for further information regarding factor specifications.
Gap Distance Specifications
Operating Temperature: 30°F
Gap Distance: 0.5”
Operating Temperature: 60°F
Gap Distance: 1.0”
Etc.
Directions
One 110-amp expansion gap kit is required for every 150 feet, for systems made of steel or one every 100 feet, for copper systems.
Compatible With: CA110
Expansion required at: 300ft (m)
Power feeds included: 350 ft (m)
Jumper(s) included: ONE #4
Attention: Gap Guide Bracket is used for mounting.
Included in the CA110XG-2 Kit
Kits include two power feeds and a jumper to bridge the gap electrically. Use tandem collectors to provide power across the expansion gap.
