SKU: IPC0400289 MPN: CP100

CP100: Pick Up Guide

SAF-T-BAR Electrification
$284.20 CAD

Secure Payment

Customer Service

Fast Shipping

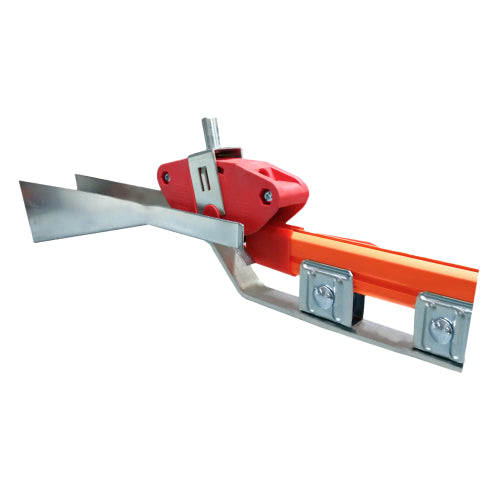

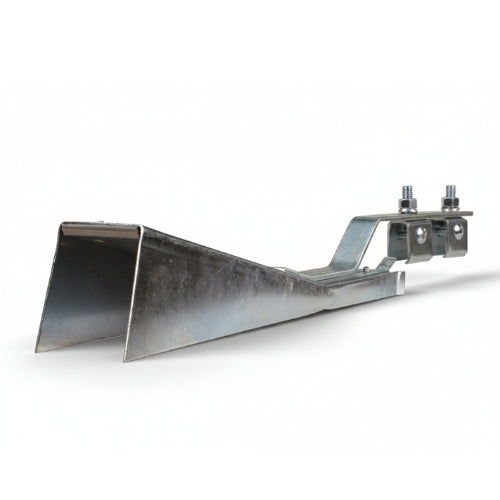

CP100: Pick Up Guide

Pick Up Guides can be used for discontinuous circuits such as bridge controls or runway circuits. The CP100 product will guide the collector back to the conductor after separation occurs.

How to use:
The guide is provided with hanger clamp and end cap. The guide itself is secured to the bracket with a 3/8" bolt and the conductor is secured to the guide with a hanger clamp. Conductors must be mounted on 3" (76 mm) centers minimum. Install conductor one inch into guide throat.
