EFE-2008-2: 250 Amp - Figure Eight Rolled Copper Galvanized x 10'

DUCT-O-BAR’s Figure 8 Electrical Conductor Systems are for overhead cranes, trolleys, monorails, hoists, conveyors, automatic stacker-retrieval systems... and any application that requires a reliable,safe, and economical moving power system.

Duct-O-Wire Figure 8 Conductor Bars are complete as assemblies that are equipped with a 600-volt conductor bar (10ft), an insulating cover, splice cover, and connector pins or joint clamps as applicable.

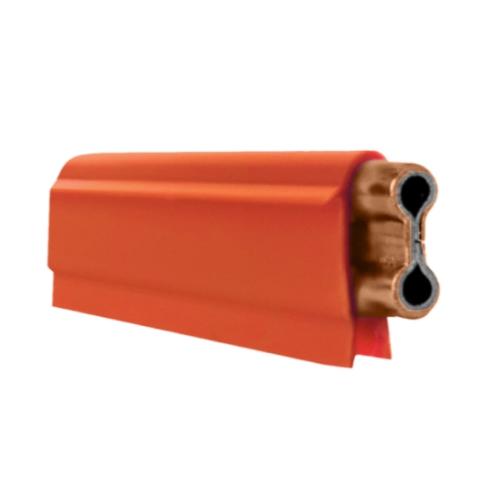

This is a rolled copper/galvanized steel conductor bar that is rated at 250 Amps. This bar is equipped with a joint cover, and is suitable for the indoor environment.

Indoor systems are to be used in environments with an ambient temperature of up to 71°C (160°F). Indoor systems contain an orange PVC Insulating Cover to differentiate it from other bars. It is recommended that they are NOT to be used in the direct sunlight (outdoors).

• Weight: 6.25lbs (2.83kg)
• Size:10ft (120”)

Pricing is quoted ex-works our warehouse. Please include freight instructions with an order (courier / carrier, account and service level you require). Alternatively, we can pre-pay and add freight charges to an order.

DISCLAIMER: Some products featured on this site are made to order and are not always available from stock. If parts are needed urgently please contact us by phone (1-888-822-2024) or email (info@crane-controls.com) before placing your order to confirm lead times.
