FC1004: 4 Conductor 10 Gauge Flat Cable

Crane-Controls.com
$6.85 USD

Secure Payment

Customer Service

Fast Shipping

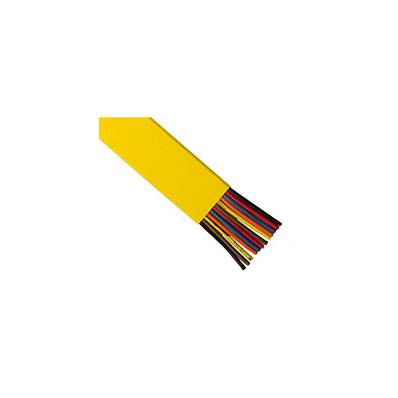

The FC1004 is a 4-conductor, 10-gauge flat festoon cable from Crane-Controls.com's festoon cable line, built to carry power and control signals to a crane, hoist, monorail, or other equipment that travels with a lateral traversing motion. Like the rest of the FC series, it uses soft drawn bare copper conductors with 105°C-rated, color-coded PVC insulation under a yellow PVC jacket, rated for indoor and outdoor use.

FC1004 is sold by the foot, and is one of several gauge and conductor-count combinations in the FC series — from FC0404 (4-conductor, 4 AWG) down to FC1608 (8-conductor, 16 AWG) — so it can be matched to the specific current-carrying and control-signal requirements of a given festoon run.

  • Flexible, festoon-rated construction — soft drawn
    bare copper conductors, built with 105 individual strands, are built for repeated flexing as the cable travels with the festoon system.
  • Color-coded conductors — each of the 4 conductors is individually color-coded with 105°C-rated PVC insulation, for consistent identification during installation and troubleshooting.
  • Yellow PVC jacket — resistant to sunlight, oil, and water; rated
    for indoor and outdoor applications.
  • Wide temperature range — rated -40°C to +105°C.
  • 600V rating — suitable for typical crane power and control festoon circuits. CSA, UL, and CE listed; FT1 and VW-1 flame-test rated.
  • Custom options available — Crane-Controls.com can also supply this cable in custom lengths, alternate constructions (SOOW), or Neoprene jacketing on request.

  • Conductors: 4
  • Conductor gauge: 10 AWG
  • Conductor material: Soft drawn bare copper
  • Strand count: 105 strands per conductor
  • Insulation: 105°C-rated, color-coded PVC
  • Insulation thickness: 0.030 in
  • Jacket: Yellow PVC
  • Temperature range: -40°C to +105°C
  • Ampacity: 40A at 30°C ambient
  • Voltage rating: 600V
  • Overall dimensions: 0.270 in × 0.880 in
  • Weight: 0.24 lb/ft
  • Certifications: CSA · UL · CE · FT1 · VW-1
  • Recommended use: Not recommended for severe flexing or impact at temperatures below -40°C
  • Sold by: The foot (cut to length)

Crane-Controls.com's technical support team can help match a cable gland size to your flat festoon cable's conductor count and gauge, and to the panel or enclosure it needs to pass through. Systems can be specified to support installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards. Final electrical design and code compliance for a complete installation should be confirmed by the installing electrical contractor or engineer of record for the specific jurisdiction.
