FC1208: 8 Conductor 12 Gauge Flat Cable
Regular price
$9.30 USD
Couldn't load pickup availability
Secure Payment
Customer Service
Fast Shipping

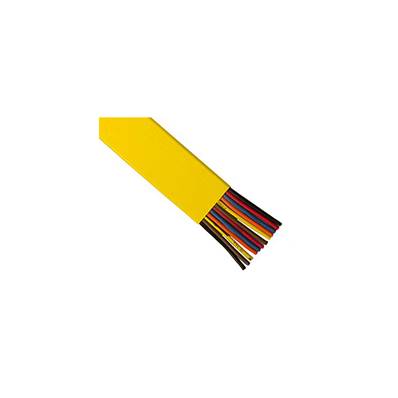

The FC1208 is an 8-conductor, 12-gauge flat festoon cable for carrying power and control signals to overhead cranes, bridge cranes, monorail systems, and hoists. It has soft-drawn bare copper conductors, color-coded PVC insulation rated for 105°C, and a yellow UV-resistant PVC jacket. Rated to 600 V with 21 A ampacity at 30°C ambient. Sold by the foot.
| Specification | Value |
|---|---|
| Conductors | 8 |
| Conductor gauge | 12 AWG |
| Conductor material | Soft drawn bare copper |
| Strands | 65 |
| Insulation | 105°C-rated, color-coded PVC |
| Insulation thickness | 0.030 in |
| Jacket | Yellow, UV-resistant PVC |
| Temperature range | -40°C to +105°C |
| Voltage rating | Up to 600 V |
| Ampacity | 21 A at 30°C ambient |
| Dimensions | 0.230 in × 1.340 in |
| Weight | 0.32 lb/ft |
| Certifications / ratings | CSA, UL, CE; FT1, VW-1 |
| Application limitation | Not recommended for severe flexing, spark-resistant environments, or impact at temperatures below -40°C |
| Sold by | The foot |
