FE-908-2: 110 Amp Figure Eight Rolled Galvanized Steel 10 ft Section With Joint Cover
Couldn't load pickup availability
Secure Payment
Customer Service
Fast Shipping

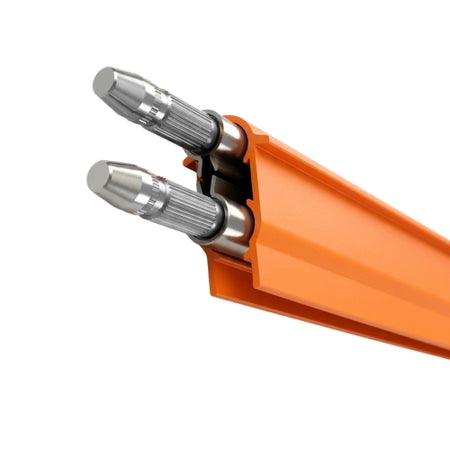

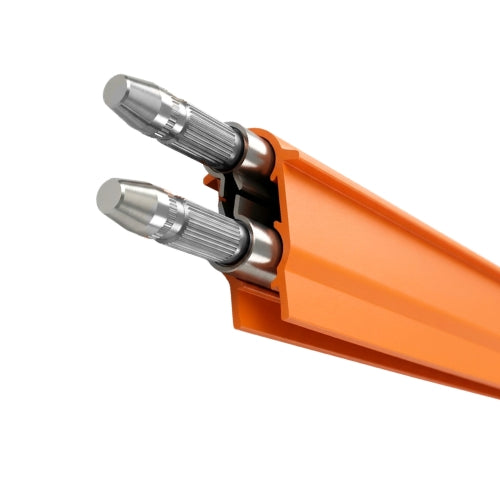

The FE-908-2 is a 110-amp Figure Eight conductor bar section from Duct-O-Bar's rolled galvanized steel line, built to supply continuous power to overhead cranes, trolleys, monorails, hoists, conveyors, automated storage and retrieval systems, and other moving-power applications. Crane-Controls.com stocks the FE-908-2 as a complete 10 ft (120") assembly — the conductor bar itself, an orange PVC insulating cover, splice cover, and connector pins or joint clamps as applicable, as furnished by the manufacturer.
This is the indoor-use configuration: the orange PVC insulating cover is intended for indoor systems operating at ambient temperatures up to 71°C (160°F); it's not recommended for outdoor use in direct sunlight. A separate outdoor configuration uses a gray PVC insulating cover with an ultraviolet additive, also rated to the same 71°C (160°F) ambient. A green cover variant (FE-908-2-G) is available separately.
| Specification | Value |
|---|---|
| Amperage rating | 110A continuous |
| Intermittent rating | 165A (1-minute-on/1-minute-off duty cycle) |
| Conductor material | Rolled galvanized steel |
| Voltage rating | 600V |
| Section length | 10 ft (120") |
| Weight | ~6.5 lbs (2.94 kg) per section |
| Cover color | Orange PVC (indoor) |
| Ambient temperature | Up to 71°C (160°F) |
| Environment | Indoor use; not recommended for outdoor use in direct sunlight. |
| Included components | Conductor bar, insulating cover, splice cover, connector pins or joint clamps (as applicable) |
