FE-908-2H10-SC: 110 Amp Figure Eight Rolled Galvanized Steel 10 ft Expansion Gap (Outdoor)

DUCT-O-BAR’s Figure 8 Electrical Conductor Systems are for overhead cranes, trolleys, monorails, hoists, conveyors, automatic stacker-retrieval systems... and any application that requires a reliable,safe, and economical moving power system.

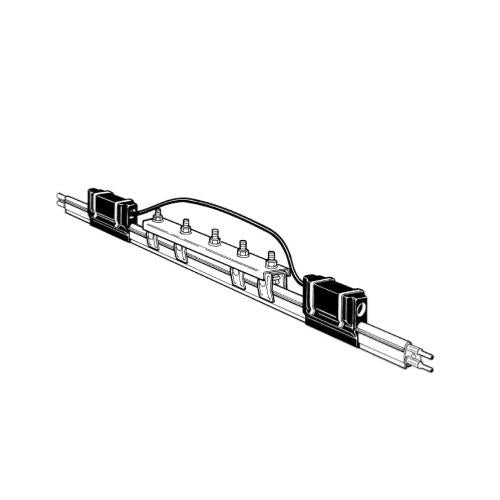

Duct-O-Wire’s expansion gap assemblies come equipped with a10ft conductor bar, insulating over, guide assembly, connector pins for one end,2 power feeds with a hanger set and jumper cable.

This model is a rolled galvanized steel 10ft expansion gap that comes equipped with a joint cover. This is for an outdoor system.

Outdoor systems are to be used in direct sunlight with an ambient temperature of up to 71°C (160°F). Outdoor systems contain a gray PVC Insulating Cover with an ultraviolet additive.

• Rating: 110 Amps
• Weight: 9lbs(4.08kg)
