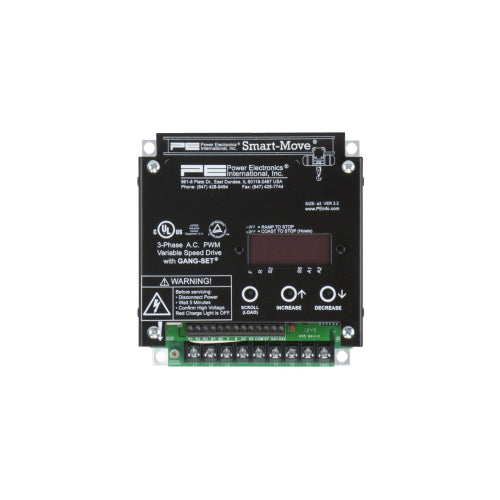

MSM2A23R: 2.4 Amp 0.5 HP 208-240V Smart Move VFD With Regen Resistors and Overloads

The Micro-Speed Smart-Move Variable Frequency Drives by Power Electronics are the most compact series offered. They have built-in internal braking resistors for travel motions built into all models.

This is the perfect series for hoists, bridge cranes, monorails, and trolleys, or any heavy-duty applications in which precise motor speed control is a requirement.

The Smart Move series is available in 3 different models, the MSM-R, MSM-RH and MSM-R. This specific device is an MSM-R. This model has solid-state brake control (travel only) and can simplify control panels with built in two-pole solid-state high voltage and brake control. This model saves you wiring, components and panel space.

MSM2A23R Technical Specifications:
FLA: 2.4
Hp: 0.5
kW: 0.37
Speed Range: up to 40:1
Ambient Temp: 14°F to 122°F (-10°C to +50°C) standard
Storage: from -4°F to +158°F (-20°C to +70°C) Size: L (6”) W (5.5”) D (5.38”)
Weight: 4.25lbs

MSM2A23R Model Specifications:
Product Type: Variable Frequency Drive
Model Series: Micro-Speed® Smart-Move ®
Line Voltage: 208-230 VAC
Max HP (kW) @ 208-230 VAC: 0.5 HP (0.37 kW)
Motor Motion Type: Traverse/Horizontal
Motor Control Type: Open-loop, variable speed control
Speed Controls: Three distinct, adjustable speed inputs (+2 programmable aux inputs); several available control modes including infinitely variable.
Control Voltage (select one): 110V(standard), 24V, Other voltage (specify)
External Regen. Resistor Required? No. Internal dynamic braking regen resistors are built-in (CMAA class D –standard), Contact PE for Class E/F options
