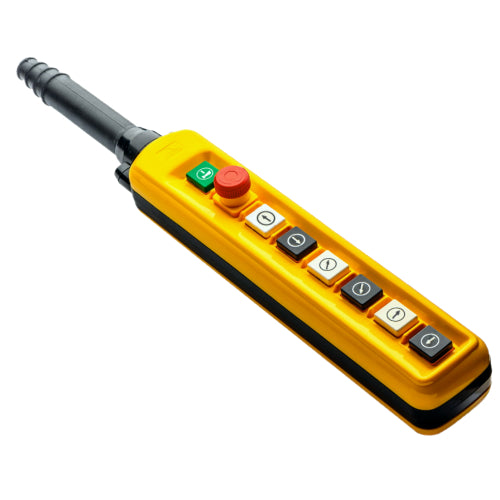

PF03080201: 8 Button NPA - 6 Single Speed Contacts E-Stop and Reset

Definition:

ThePF03080201 is an NPA pendant that operates as an auxiliary controller of electrical motors through conductors, PLC's or other power interfaces.

ThePF03080201 is a popular choice for 3 motion, single speed overhead bridge cranes.

<p><span>Features:</span></p> <p>This durable model is a functional pendant device that consists of 6 buttons:</p> <ul><li>1 emergency stop with 1 normally closed (NC) configuration</li><li>1 start/reset button with 1 normally open (NO) configuration</li><li>6-single speed buttons that have a normally open (NO) configuration and a mechanical interlock between opposing functions</li></ul>

<p><span>Technical Specifications:</span></p> <ul><li><span style="font-weight: bold;">Operational Temperature</span>: -25°C/+70°C</li><li>Rated operational current: 1.9 A</li><li>Mechanical life: 1,000,000 operations</li><li>Certifications: CE - UL - (c)UL</li><li>Weight: 2.65lbs</li><p>Looking for replacement parts? </p>
