Home » PF03100334: 10 Button NPA - 8 Single Speed Contacts E-Stop and Reset
SKU: IPC0800206 MPN: PF03100334

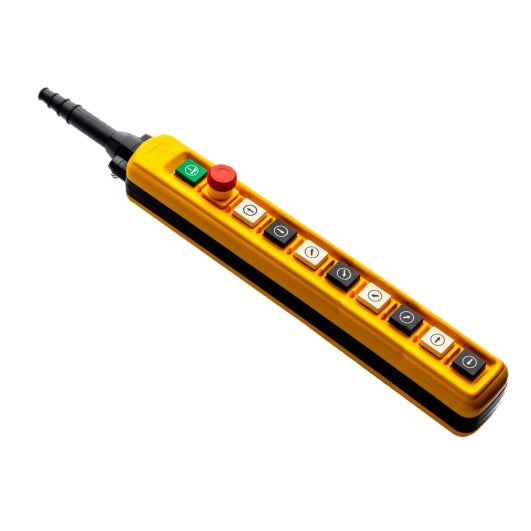

PF03100334: 10 Button NPA - 8 Single Speed Contacts E-Stop and Reset

TER
$675.00 USD

Secure Payment

Customer Service

Fast Shipping

PF03100334: 10 Button NPA - 8 Single Speed Contacts, E-Stop and Reset

The PF03080471is an NPA pendant that operates as an auxiliary controller of electrical motors through conductors, PLC's or other power interfaces.
The PF03080471 is a popular choice for 3 motion, two speed overhead bridge cranes.  Also a good candidate for infinitely variable speed VFD control

<p><span>Features:<span></p>
<ul>
<li>This durable model is a functional pendant device that consists of 8 buttons:</li>
<li>1 emergency stop with 1 normally closed (NC) configuration</li>
<li>1 start/reset button with 1 normally open (NO) configuration</li>
<li>6-double speed buttons that have a normally open (NO) configuration and a mechanical interlock between opposing functions</li>
</ul>

<p><span>Technical Specifications:<span></p>
<ul>
<li>Operational Temperature: -25°C/+70°C</li>
<li>Rated operational current: 1.9 A</li>
<li>Mechanical life: 1,000,000 operations</li>
<li>Certifications: CE - UL - (c)UL</li>
<li>Weight: 2.65lbs</li>
</ul>
