SKU: IPC0810227 MPN: PF25760300

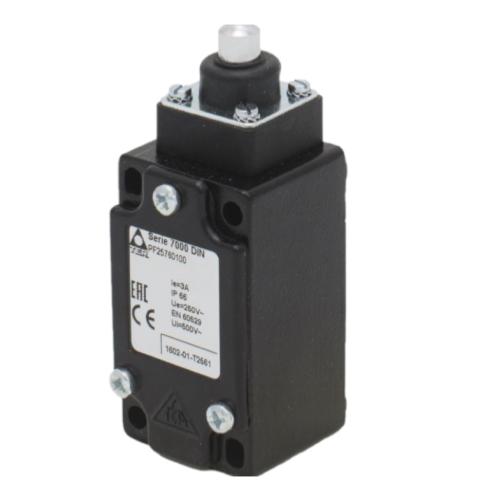

PF25760300: DIN Plunger Limit Switch With 1NO + 1NC Slow Action Contact

TER
$499.70 CAD

Secure Payment

Customer Service

Fast Shipping

PF25760300: DIN Plunger Limit Switch With 1NO + 1NC Slow Action Contact

The DIN position limit switch by TER contains die-cast aluminumenclosures as well as thermoplastic heads that are made of nylon,reinforced with fiberglass.

These models are guaranteed to protect against dust and water due to their internal water-resistant components.

This plunger design requires the PRSL0031XXswitch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, slow action.
Technical Specifications:</span></p><p><span style="text-decoration: underline;"></span></p><ul> <li><span style="font-weight: bold;">Rated operational current</span>: 3 A </li> <li><span style="font-weight: bold;">Rated operational voltage</span>: 250 V </li> <li><span style="font-weight: bold;">Rated thermal current</span>: 10 A </li> <li><span style="font-weight: bold;">Rated insulation voltage</span>: 300 V~ </li> <li><span style="font-weight: bold;">Mechanical life:</span> 1x106 operations </li> <li><span style="font-weight: bold;">Connections</span>: Screw-type Terminals </li> <li><span style="font-weight: bold;">Wires</span>: 1x2.5 mm2, 2x1.5 mm2 </li> <li><span style="font-weight: bold;">Tightening torque:</span> 0.8 Nm</li></ul><p><span style="text-decoration: underline;"></span></p><p><span style="font-weight: bold;"><i>*View attached image for actuating travel diagram</i></span></p><img src="/Files/98736/Img/09/Actuating-Travel.png" alt="" border="0" style="margin: 0px; width: 300px; height: 57px;" />

Features:</span></p><ul> <li><span style="font-weight: bold;">Certifications: </span>CE marking and EAC<span style="font-weight: bold; text-decoration: underline;"></span></li> <li><span style="font-weight: bold;">Size</span>: 104x40x43 mm, with 4 fixing holes</li> <li><span style="font-weight: bold;">Mechanical life of switches</span>: 1 million operations</li> <li><span style="font-weight: bold;">Operation frequency</span>: 3600 operations/hour max</li> <li><span style="font-weight: bold;">Extreme temperature resistance:</span> -25°C to +70°C</li></ul><p><span style="text-decoration: underline;">
