SKU: IPC0810236 MPN: PF25762800

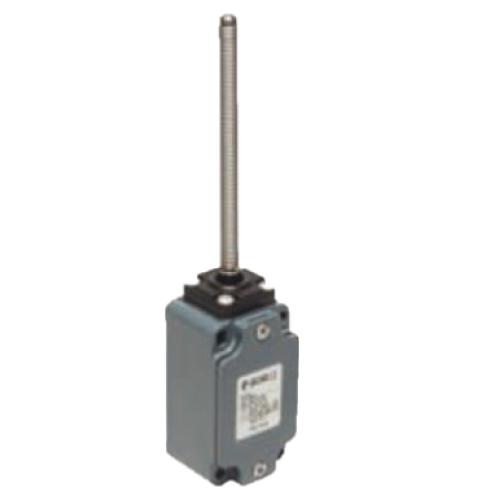

PF25762800: DIN Flexible Rod Limit Switch With 1NO + 1NC Slow Contact

TER
$499.70 CAD

Secure Payment

Customer Service

Fast Shipping

PF25762800: DIN Flexible Rod Limit Switch With 1NO + 1NC Slow Contact

The DIN position limit switch by TER contains die-cast aluminum enclosures as well as thermoplastic heads that are made of nylon, reinforced with fiberglass.

These models are guaranteed to protect against dust and water due to their internal water-resistant components.

This flexible rod design requires the PRSL0031XXswitch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, slow action.
<p><span style="text-decoration: underline;">Technical Specifications:</span></p><ul> <li><span style="font-weight: bold;">Rated operational current</span>: 3 A </li> <li><span style="font-weight: bold;">Rated operational voltage</span>: 250 V </li> <li><span style="font-weight: bold;">Rated thermal current</span>: 10 A </li> <li><span style="font-weight: bold;">Rated insulation voltage</span>: 300 V~ </li> <li><span style="font-weight: bold;">Mechanical life:</span> 1x106 operations </li> <li><span style="font-weight: bold;">Connections</span>: Screw-type Terminals </li> <li><span style="font-weight: bold;">Wires</span>: 1x2.5 mm2 , 2x1.5 mm2 </li> <li><span style="font-weight: bold;">Tightening torque:</span> 0.8 Nm</li></ul><img src="https://cdn.shopify.com/s/files/1/0901/6475/6769/files/Actuating-Travel_ed1f34c1-a823-4059-9dfa-91b061e7bef3.png?v=1736102350" alt="" border="0" style="margin: 0px; width: 300px; height: 66px;" />

<p><span style="text-decoration: underline;">Features:</span></p><ul> <li><span style="font-weight: bold;">Certifications: </span>CE marking and EAC<span style="font-weight: bold; text-decoration: underline;"></span></li> <li><span style="font-weight: bold;">Size</span>: 104x40x43 mm, with 4 fixing holes</li> <li><span style="font-weight: bold;">Mechanical life of switches</span>: 1 million operations</li> <li><span style="font-weight: bold;">Operation frequency</span>: 3600 operations/hour max</li> <li><span style="font-weight: bold;">Extreme temperature resistance:</span> -25°C to +70°C</li></ul><p><span style="font-weight: bold;"><i>*View attached image for actuating travel diagram</i></span></p>

Pricing is quoted ex-works our warehouse. Please include freight instructions with an order (courier / carrier, account and service level you require). Alternatively, we can pre-pay and add freight charges to an order.

DISCLAIMER: Some products featured on this site are made to order and are not always available from stock. If parts are needed urgently please contact us by phone (1-888-822-2024) or email (info@crane-controls.com) before placing your order to confirm lead times.
