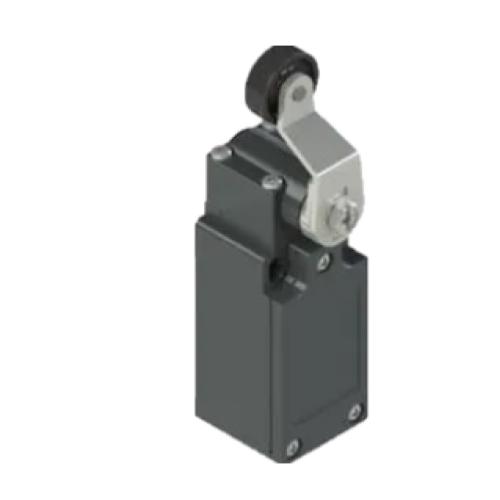

PF25764100: DIN Central Roller Iron Lever Limit Switch 1NO + 1NC

PF25764100: DIN Central Roller Iron Lever Limit Switch 1NO + 1NC

The DIN position limit switch by TER contains die-cast aluminum enclosures as well as thermoplastic heads that are made of nylon, reinforced with fiberglass.

These models are guaranteed to protect against dust and water due to their internal water-resistant components.

This central roller iron lever design requires the PRSL0025XXswitch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, snap action.

<p><span style="text-decoration: underline;">Features:</span></p><ul> <li><span style="font-weight: bold;">Certifications: </span>CE marking and EAC<span style="font-weight: bold; text-decoration: underline;"></span></li> <li><span style="font-weight: bold;">Size</span>: 104x40x43 mm, with 4 fixing holes</li> <li><span style="font-weight: bold;">Mechanical life of switches</span>: 1 million operations</li> <li><span style="font-weight: bold;">Operation frequency</span>: 3600 operations/hour max</li> <li><span style="font-weight: bold;">Extreme temperature resistance:</span> -25°C to +70°C</li></ul>
