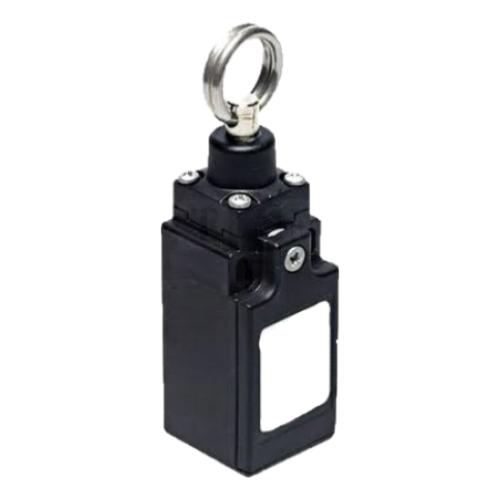

PF25767600: DIN Ring For Rope Limit Switch With 1NO + 1NC Slow Contact

PF25767600: DIN Ring For Rope Limit Switch With 1NO + 1NC Slow Contact

The DIN position limit switch by TER contains die-cast aluminum enclosures as well as thermoplastic heads that are made of nylon, reinforced with fiberglass.

These models are guaranteed to protect against dust and water due to their internal water-resistant components.

This ‘ring for rope’ design requires the PRSL0031XX switch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, slow action.

<p><span style="text-decoration: underline;">Features:</span></p><ul> <li><span style="font-weight: bold;">Certifications: </span>CE marking and EAC<span style="font-weight: bold; text-decoration: underline;"></span></li> <li><span style="font-weight: bold;">Size</span>: 104x40x43 mm, with 4 fixing holes</li> <li><span style="font-weight: bold;">Mechanical life of switches</span>: 1 million operations</li> <li><span style="font-weight: bold;">Operation frequency</span>: 3600 operations/hour max</li> <li><span style="font-weight: bold;">Extreme temperature resistance:</span> -25°C to +70°C</li></ul>
