PF39030002: Two Speed Charlie Pendant With E-Stop

TER

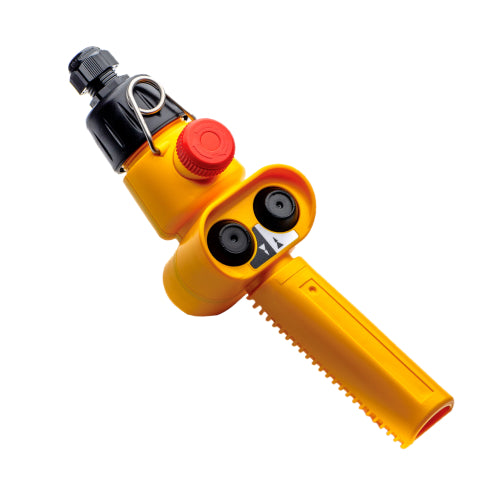

The PF39030002 is a TER Charlie pendant control station built with two-speed pushbutton control and an integrated emergency-stop pushbutton.
$70.95 USD

Secure Payment

Customer Service

Fast Shipping

The PF39030002 is a TER Charlie pendant control station built with two-speed pushbutton control and an integrated emergency-stop pushbutton. Like other Charlie pendants, it functions as an auxiliary control station: it sends command signals to a crane's motor starters, contactors, or PLC rather than switching motor power directly, giving the operator two-speed control of a single crane motion from a compact, hand-held enclosure.

The standard setup includes three actuators: two pushbuttons controlling opposing directions of a single motion, each providing two-speed control, plus a latched mushroom emergency-stop button with normally closed contact. An electrical interlock prevents simultaneous operation of opposing directions. The third actuator is a latched mushroom emergency-stop pushbutton with a normally closed (N/C) contact. Crane-Controls.com stocks the PF39030002 as part of the TER Charlie pendant line.

  • Two-speed, three-button configuration — two pushbuttons for two-speed control of a single motion, plus a latched mushroom E-stop pushbutton (N/C contact).
  • Emergency-stop design — the mushroom E-stop pushbutton itself is designed to ISO 13850 (Safety of machinery — Emergency stop function — Principles for design); this standard governs the emergency-stop function specifically, not the pendant's other pushbuttons or wiring.
  • Standard hardware included — M20 cable gland, hook, and electrical interlock between opposite-function pushbuttons.
  • Tool-free service — a threaded ring secures the enclosure and cover, giving access to internal components without tools; switches are assembled inside the pendant without screws, with terminals facing the cable inlet to speed up wiring.
  • Ergonomic handle — a hollow handle lets the operator set the station down quickly onto a pin when it's not in use.
  • Environmental protection — wear-resistant materials and an IP65-rated enclosure protect internal components against water and dust.
Specification Value
Enclosure protection IP65
Insulation category Class II
Ambient temperature Operational : -25°C to +70°C · Storage : -40°C to +70°C
Weight ~320 g
Operating position Any position
Rated operational current 3 A (utilisation category AC-15)
Rated operational voltage 250 Vac
Rated thermal current 10 A
Rated insulation voltage 500 Vac
Mechanical life 1,000,000 operations
Terminal connections Screw-type; 1×2.5 mm² or 2×1.5 mm² wire (UL/cUL : 16–18 AWG copper conductor, 60°C or 75°C rated); 0.6 Nm tightening torque
Certifications CE (complete assembly); UL, cUL (individual contact blocks only)
Standards conformity EN 60204-1, EN 60947-1, EN 60947-5-1, EN 60529, ISO 13850; Low Voltage Directive 2014/35/EU; Machinery Directive 2006/42/EC

Crane-Controls.com’s technical support team can help match a pendant control station configuration to your crane’s motion and speed-control requirements. Our team can help match equipment to your crane and the standards that apply to your installation. Final electrical design and code compliance for a complete installation should be confirmed by the installing electrical contractor or engineer of record for the specific jurisdiction.
