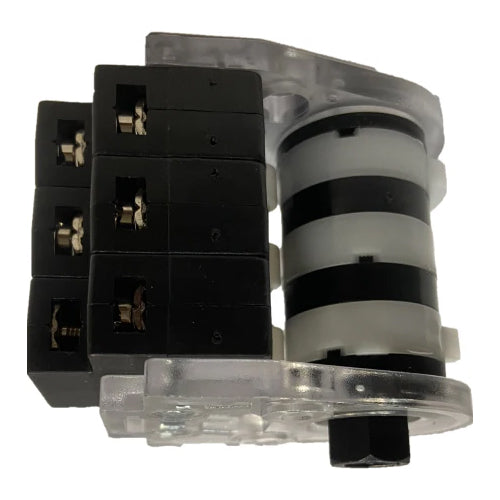

PRFC0006PEC: Cam Block With 3 Sector Cams and 3 PRLS0003XX

This is a standard cam set with 3 PRSL0003XX (spade terminals) switches and 3 C cams.

General

Features:</span></p><ul> <li><span style="font-weight: bold;">Gear motor</span>&nbsp;which transfers movement through an input reduction stage</li> <li>Accurate&nbsp;<span style="font-weight: bold;">adjustment of cams</span></li> <li>Stainless Steel transmission and gear driving shafts, self-lubricating technopolymer gears and driving bushings,technopolymer base and cover</li> <li><span style="font-weight: bold;">Positive Opening NC and NO contacts for safety functions</span></li> <li><span style="font-weight: bold;">Sintered bronze bushings</span>&nbsp;at base to optimize shaft rotation and prevent rubbing with plastic material</li></ul><p><span style="text-decoration-line: underline;">

Technical Specifications:</span></p><ul> <li><span style="font-weight: bold;">Mechanical Life:</span>&nbsp;1 million operations</li> <li><span style="font-weight: bold;">IP Protection Degree:</span>&nbsp;IP42,IP65 or IP66, IP67 and IP69K</li> <li><span style="font-weight: bold;">Extreme Temp. Resistance</span>:(-40c°)- (+80C°)</li> <li><span style="font-weight: bold;">Certifications</span>: CE, cURus, EAC</li></ul><br /><p>&nbsp;</p>
