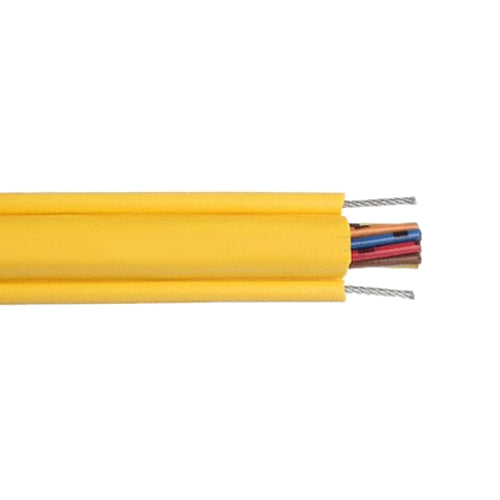

The RPC1616PPS-4 is a 16-conductor, 16 AWG round pendant cable with external strain relief (PPS-4), designed for use in festoon systems as the vertical drop cable from a crane or hoist down to a pendant push-button station. Its bare copper conductors (65 strands of 34 AWG) are protected by a yellow PVC jacket resistant to UV, weather, oil, and water, and the cable is UL Listed and CSA Approved. It measures 0.630" in diameter and weighs 0.32 lb per foot. Other conductor counts, jackets, and lengths are available on request.
| Specification | Value |
|---|---|
| Conductors | 16 |
| Conductor gauge | 16 AWG |
| Conductor material | Bare copper |
| Stranding | 65/34 (65 strands of 34 AWG) |
| Jacket | Yellow PVC |
| Diameter | 0.630" |
| Weight | 0.32 lb/ft |
| Temperature range | -40°C to 105°C |
| Strain relief | External (PPS-4) |
| Certifications | UL Listed CSA Approved |
| Application | Vertical drop cable from a crane or hoist to a pendant push-button station |
| Sold by | The foot (cut to length) |
