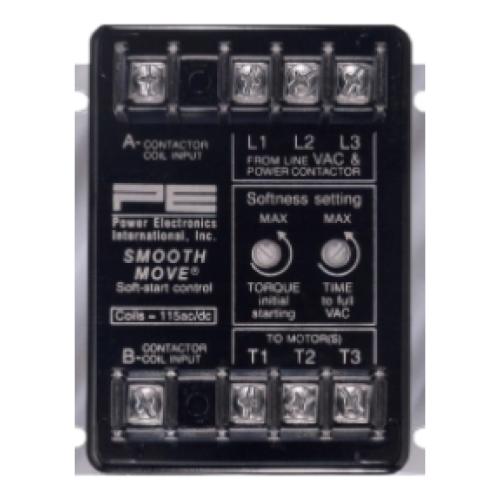

SM10A1L57: 10 Amp Single Speed Soft Start 7.5 HP at575V

This single-speed soft start motor control isdesigned perfectly for both reversing and non-reversing systems. This deviceeliminates wear and breakage on belts, drive trains, gears etc.

Power Electronics Smooth-Move® is engineered to be compatiblewith monorails, textile machines, trolleys, overhead cranes and doors, bottlingequipment, conveyors etc.

Features:

·Size: 5”x 5”x 3.625”

·Phase loss protection on input

·Time and torque settings for motor softness

·Simple installation

·Saves money on productivity and machinerylife

·Arc-Elimination

Technical Specifications:</span></p><p>·<span style="font-weight: bold;">VAC</span>: 208-575</p><p>·<span style="font-weight: bold;">Certifications</span>: (c)UL</p><p>·<span style="font-weight: bold;">Voltage</span>: 10amps</p><p>·<span style="font-weight: bold;">HP</span>: 3hp-7.5hp (2.2kw-5.5kw)</p><p>·<span style="font-weight: bold;">*Operating Temperature</span>: 14°F-131°F(-10°C-55°C)</p>*Shield against radiant heat source<br />
