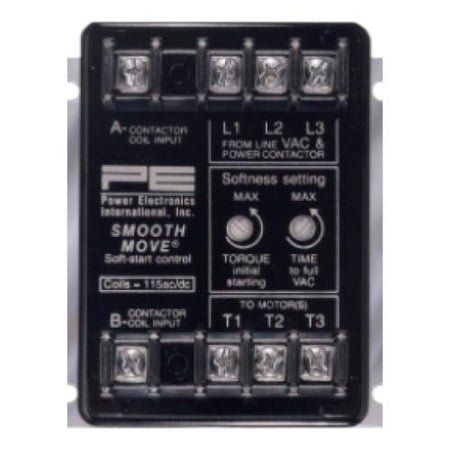

SM4A1L57: 4 Amp Single Speed Soft Start 3HP at 575V

This single-speed soft start motor control is designed perfectly for both reversing and non-reversing systems. This device eliminates wear and breakage on belts, drive trains, gears etc.

Power Electronics Smooth-Move® is engineered to be compatible with monorails, textile machines, trolleys, overhead cranes and doors, bottling equipment, conveyors etc.

Features:

·Size: 5”x 5”x 3.625”

·Phase loss protection on input

·Time and torque settings for motor softness

·Simple installation

·Saves money on productivity and machinery life

·Arc-Elimination

Technical Specifications:</span></p><p>·<span style="font-weight: bold;">VAC</span>: 208-575</p><p>·<span style="font-weight: bold;">Certifications</span>: (c)UL</p><p>·<span style="font-weight: bold;">Voltage</span>: 4amps</p><p>·<span style="font-weight: bold;">HP</span>: 1hp-3hp (0.75kw-2.2kw)</p><p>·<span style="font-weight: bold;">*Operating Temperature</span>: 14°F-131°F(-10°C-55°C)</p>*Shield against radiant heat source<br />
