WGL100: Flat Cable Gland With 1 Inch Knockout
Couldn't load pickup availability
Secure Payment
Customer Service
Fast Shipping

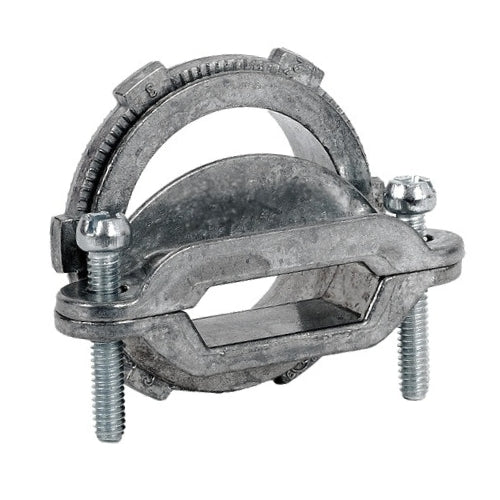

The WGL100 is a zinc die-cast flat cable gland that connects flat festoon cable to a power source or junction box on overhead cranes and monorail equipment. It fits a 1-inch knockout (1.375-inch drill size) and accepts flat cable up to 0.500 in high by 0.750 in wide. The gland clamps around the cable and is secured from inside the enclosure with the supplied locknut. For applications that need a watertight cable entry, see the WGLS heat-shrink cable glands.
| Specification | Value |
|---|---|
| Part Number | WGL100 |
| Knock-Out | 1.00 in |
| Drill Size | 1.375 in |
| Cable Range (height x width) | 0.500 x 0.750 in |
| Material | Zinc die-cast |
| Supplied With | Gland and locknut. |
| All dimensions | Inches |
