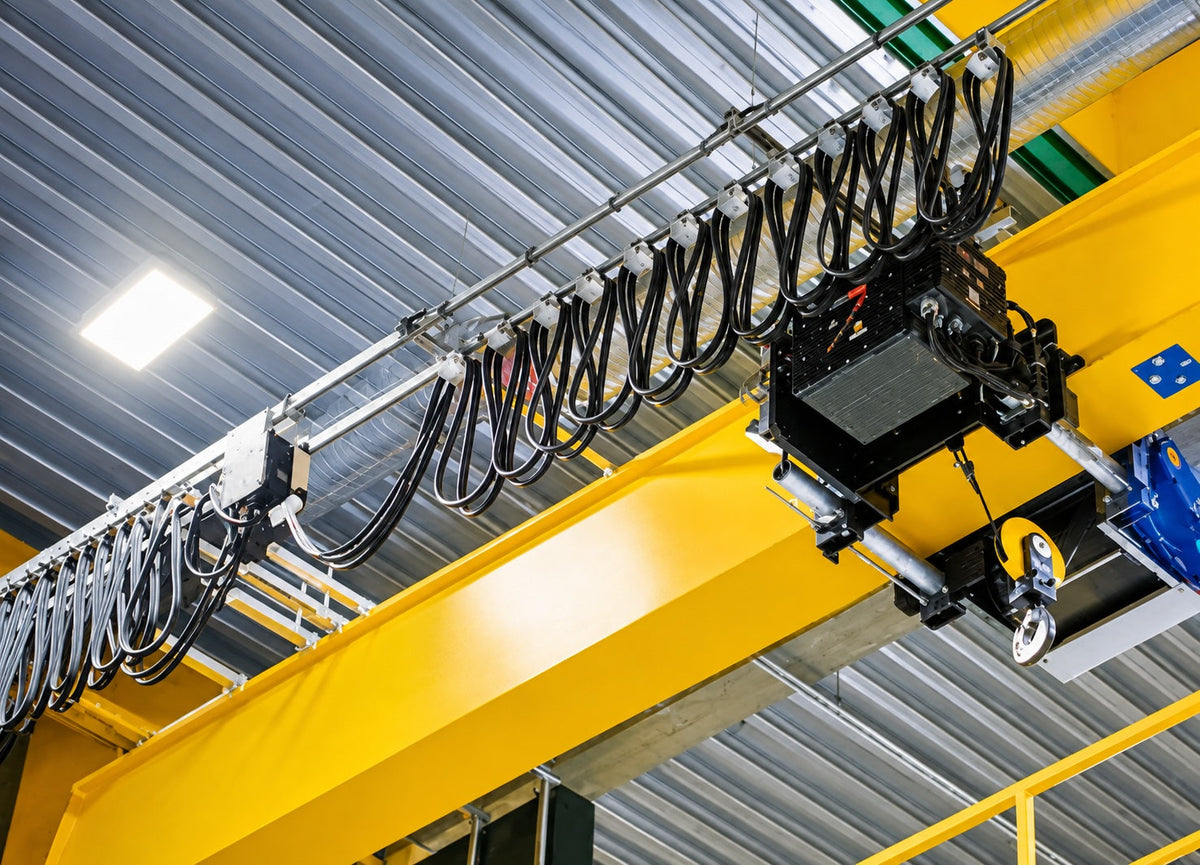

A festoon system carries power and control cable along a crane's travel path as the crane moves, keeping the cable organized and off the floor rather than dragging or draping loosely. Three common festoon configurations for overhead crane applications are C-Track, I-Beam, and wire rope - alongside other configurations such as square track, and Aluma-Track which is suited to more specific conditions. C-Track, I-Beam, and wire rope aren't interchangeable with each other. Each suits a different combination of travel distance, cable weight, mounting constraints, and budget. This guide covers how each one works and how to decide between them.
At a Glance: All three systems use the same basic principle: trolleys carry the cable along a defined travel path, with the crane moving the festoon system and carrier trolleys supporting the cable along the run. What changes is the support path: an extruded C-shaped rail, an I-beam flange, or a wire rope. Travel distance, cable weight, and mounting constraints usually decide which is the right fit.
How Each System Works
C-Track Festoon
A C-Track system runs cable-carrying trolleys inside a rigid, enclosed rail shaped like the letter C with a narrow slot running along the bottom. One trolley in the system, the lead trolley, is mechanically connected to the crane with a tow bar, supplied by the installing contractor. The tow bar passes through the tow trolley to pull the rest of the system along the track; the remaining trolleys are carrier trolleys that simply ride along the rail, supporting the cable at intervals as it's drawn through. The rail itself mounts along the crane's travel path in fixed-length sections — Crane-Controls.com's own C-Rail line, for example, is supplied in 3- and 6-meter sections (in galvanized or 304 stainless steel) that couple together to create runs of the required length, with 1-meter support arms, end caps, an end clamp, an end stop, and couplers rounding out a complete installation.
I-Beam Festoon
An I-Beam system uses the same basic lead-trolley-and-carrier-trolley principle as C-Track, but the trolleys ride on the lower flange of a standard rolled steel I-beam instead of a dedicated C-shaped rail. Because it uses common structural steel rather than a purpose-built track profile, I-beam festoon is often a lower-cost option where an I-beam runway is already part of the structure or easy to add. Unlike C-Track's more standardized sizing, I-beam trolley selection can be engineered per installation - the specific I-beam size, flange dimensions, and cable package all need to be confirmed before selection, rather than assuming a general clearance or mounting-weight difference from C-Track. This is a well-established, widely-carried system type, not a niche option - Crane-Controls.com currently carries I-Beam festoon hardware from two manufacturers (Wampfler and Duct-O-Wire), plus its own house line.
Wire Rope Festoon
A wire rope festoon system supports the cable from a length of wire rope strung parallel to the crane's travel path, rather than a rigid track. For example, Crane-Controls.com's standard wire-rope configuration uses one end clamp at the fixed end (with the opposite end terminating into separate hardware depending on the installation), four rope clamps, two eye bolts, two thimbles, and 3/16″ (1/4″ OD) PVC-coated wire rope. The wire rope itself is supplied roughly 5 ft longer than the active travel distance, with one intermediate trolley used per 5 ft of active travel to support the cable along the run. Because it doesn't require a rigid rail or beam, wire rope can be a simpler and lower-cost option for suitable short-span, light-duty applications - well suited to shorter runs and lighter cable, but not a fit for long travel distances or heavy cable loads.
How to Choose
Step 1 - Consider Travel Distance
Longer runs generally favor a rigid track system - C-Track or I-Beam - over wire rope, since a taut wire rope run has practical length limits before sag and trolley spacing become harder to manage. C-Track and I-Beam systems can be extended with additional rail or beam sections, making them suitable for substantially longer travel distances than typical wire-rope configurations. Final system length depends on the specific track, trolley, cable package, supports, and manufacturer requirements.
Step 2 - Consider Cable Weight and Duty Cycle
Heavier cable, higher-duty-cycle applications, and installations with multiple cables running together generally favor C-Track or I-Beam, which support the cable more rigidly along its length. Wire rope festoon is better matched to lighter cable and lower-duty applications. Cable diameter or thickness, bend radius, and the total cable package also matter - the selected trolley must accommodate the package within its saddle and window dimensions and remain within its rated load capacity; two cables of the same total weight aren't necessarily interchangeable if their geometry or bend-radius requirements differ.
Step 3 - Consider Travel Speed and Duty Cycle
Operating speed and duty cycle can affect festoon selection just as much as travel distance and cable weight. Higher-speed or higher-cycle applications place greater demands on the trolley system, cable package, track or support system, and installation. Wire rope systems are generally better suited to lower-speed, light-duty applications, while C-Track and I-Beam systems offer configurations designed for more demanding service. Always check the manufacturer's rated speed, duty, trolley spacing, and cable requirements for the specific system.
Step 4 - Consider Mounting Constraints and Available Structure
If an I-beam runway is already part of the building or crane structure, I-Beam festoon can be a straightforward, high performance fit. Where no such structure exists, a purpose-built C-Track rail or a wire rope run (which needs only end supports, not a continuous beam) may be simpler to install. C-Track and I-Beam both need more overhead clearance for the trolley and rail/beam profile than a wire rope run typically does. Also consider the operating environment - dust, moisture, corrosive conditions, temperature, and outdoor exposure can affect the appropriate track, trolley, cable, and material selection.
Step 5 - Consider Budget
Wire rope festoon is generally the lowest-cost configuration for a suitable short, light-duty application. C-Track and I-Beam costs vary substantially with cable load, trolley type, structural requirements, travel speed, and installation conditions, so there's no universal cost ranking between them - it depends on the specific installation.
Don't Choose on Price Alone: the lowest component cost isn't necessarily the lowest installed cost. A wire-rope system may be inexpensive for a short, light-duty application, but adding structural supports, changing the cable package, or exceeding its practical operating limits can change the economics. Likewise, an I-Beam system may make excellent sense when suitable structure already exists but be less attractive if a new beam must be installed. Compare the complete installed system, not just the price of the track or trolley.
What About Conductor Bar?
Festoon isn't the only way to provide power to a traveling overhead crane. Conductor bar is another common electrification approach, particularly for permanent crane runway installations and applications where continuous power delivery over longer travel distances is important. Festoon systems can be advantageous when multiple cables or hoses need to travel with the equipment. The right choice depends on the crane design, services required, travel distance, speed, and installation environment - see Crane-Controls.com's separate comparison of conductor bar, festoon, and cable reel systems for that broader decision.
Terminology
- Lead Trolley - the trolley in a C-Track festoon system that a tow bar passes through to pull the rest of the system along the travel path, per Crane-Controls.com's own festoon design guide. Some product listings on the site instead use "Tow Trolley" or "Towing Trolley" for similar wire-rope and round-cable components - terminology varies by product line, so confirm which term the specific system in question uses.
- Carrier Trolley - a trolley that rides along a festoon track or rope, supporting the cable at intervals without being directly towed by the crane. Also known as an intermediate trolley.
- C-Track - a rigid, enclosed rail shaped like the letter C, with a narrow slot along the bottom, used to guide festoon trolleys.
- Track Coupler - a hardware component that joins two sections of C-Track rail end-to-end to extend a run.
- End Clamp - a hardware component that secures the fixed end of a festoon cable.
Frequently Asked Questions
Which festoon system is cheapest?
Wire rope festoon is generally the lowest-cost configuration, since it doesn't require a rigid rail or beam. But, it's suited to lighter cable and shorter runs, so the comparison only holds where wire rope is actually a fit for the application. Between C-Track and I-Beam, there's no universal cost ranking; both vary with cable load, structural requirements, and installation conditions. The lowest component cost also isn't necessarily the lowest installed cost once structural supports and cable packaging are factored in.
Can I use I-Beam festoon without an existing I-beam runway?
Yes, but a beam would need to be installed specifically for the festoon system, which changes the cost comparison against a purpose-built C-Track rail. I-Beam festoon is most cost-effective where suitable beam structure already exists as part of the building or crane.
How long can a wire rope festoon run be?
Crane-Controls.com's own festoon design guide puts it at generally under 75 ft for a wire rope system, depending on cable weight and system design. There isn't one universal maximum - allowable span depends on the wire rope size, cable package, trolley spacing, allowable sag, travel speed, and manufacturer design limits. As a practical rule, wire rope festoon is generally better suited to shorter travel distances than rigid C-Track or I-Beam systems. For a specific application, calculate the required span and cable load against the manufacturer's system requirements rather than relying on a generic maximum length.
Do all three systems use the same trolleys?
No. Each track type - C-Track, I-beam, and wire rope - uses trolleys designed for that specific profile, and they aren't interchangeable between system types.
Comparison at a Glance
| System | Best Suited To | Key Advantage | Typical Limitation |
|---|---|---|---|
| C-Track | Longer runs, heavier cable, higher duty cycle | Dedicated, modular track system | Requires a purpose-built rail and adequate overhead clearance |
| I-Beam | Applications with suitable I-beam structure | Uses structural beam as the trolley path | Requires appropriate beam and overhead clearance |
| Wire Rope | Shorter runs, lighter cable, lower-speed/light-duty applications | Simple, flexible installation | Limited by span, sag, cable load, and trolley spacing |
Festoon Systems Available from Crane-Controls.com
Crane-Controls.com features C-Track, I-Beam, and wire rope festoon hardware, across its own line and multiple manufacturer brands.
- C-Rail - the rail mounts in fixed 3-meter and 6-meter sections (also available in galvanized or 304 stainless steel), with support arms, couplers, end clamps, and stops completing installations.
- Cable Trolleys - carrier-style trolleys for C-Rail systems, available with plastic, steel, or stainless-steel saddles. Variants for flat and round cables.
- Wire Rope Festoon Kits - trolleys, end clamp, rope clamps, eye bolts, thimbles, and PVC-coated wire rope for wire rope festoon installations.
- I-Beam Festoon - available across four product lines: Wampfler, Duct-O-Wire, Vahle, and Crane-Controls' own I-Beam system.
Application Support
Crane-Controls.com's technical support team can help match a festoon system type, and the specific hardware within it, to your crane's travel distance, cable requirements, and mounting constraints. Systems can be specified to support installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards. Final electrical design and code compliance for a complete installation should be confirmed by the installing electrical contractor or engineer of record for the specific jurisdiction.
