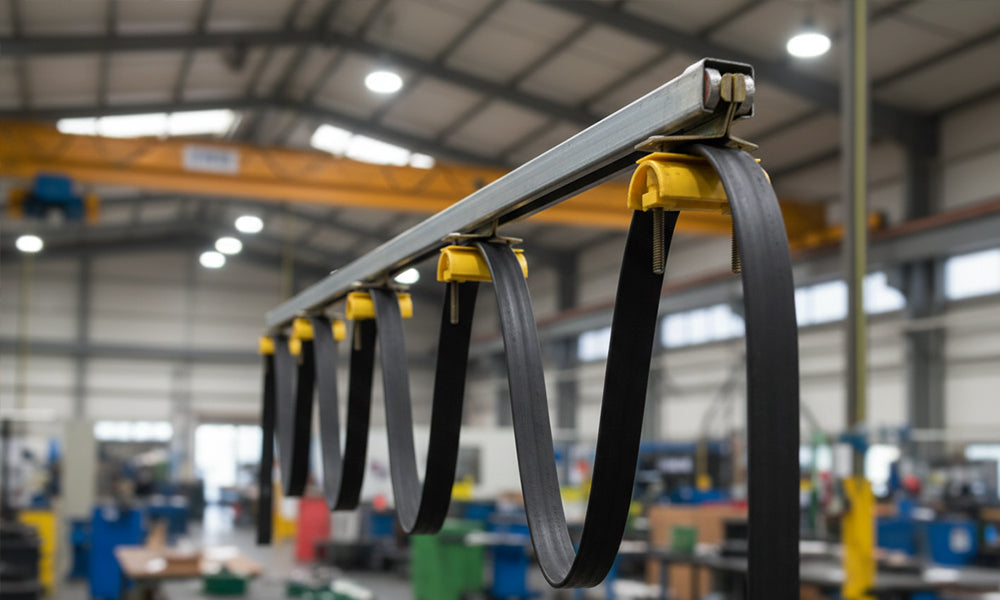

Festoon System Design Guide for US Overhead Crane and Industrial Applications

How to Specify, Size, and Install a Cable Festoon System

What Is a Festoon System?

A festoon system is a cable and hose management solution that supports, protects, and guides power cables, control cables, communication cables, and hoses along the travel range of a moving overhead crane bridge, trolley, monorail, or industrial machinery installation. As the crane or equipment moves, the cables are suspended from a series of trolley cars that travel along a supporting track, I-beam, or wire rope — allowing the cable loops between cars to compress and extend in a controlled manner throughout the full travel cycle.

Festoon systems are one of the most common mobile electrification methods used for overhead cranes and industrial moving equipment. Other common methods include conductor bar systems, cable reels, and energy chains— each suited to different combinations of travel distance, cable load, speed, and application requirements. Conductor bar systems and cable reels are covered separately in Crane-Controls.com's guide to Conductor Bar vs. Festoon Systems vs. Cable Reels.

This guide covers festoon system design — how to select the correct system type, size the system for your application, and specify the components required for a US overhead crane or industrial installation.

Festoon System Types

Four festoon system configurations are used in US overhead crane and industrial applications. Each is designed for a different combination of cable load, travel speed, runway length, and mounting condition.

Wire Rope Supported Festoon Systems

Wire rope supported festoon systems are the lightest-duty and lowest-cost festoon configuration. The cables are supported by trolley cars that travel along a tensioned wire rope stretched between two rigid anchor points. Wire rope systems are best suited for short travel distances and light cable loads where a rigid track system is not required.

Cable and hose capacity: Wire rope festoon systems are intended for use with flat cable, individual round cables, or hoses, with maximum cable thickness, diameter, weight, and minimum bend radius depending on the selected trolley design and manufacturer specifications. Large-diameter or stiff hoses may not be suitable for wire rope systems due to bend radius, weight, and flexibility requirements. Where multiple round cables or hoses are required, some trolley designs can accommodate an additional cable or hose using a supplemental saddle clamp. For larger or more complex cable packages, a C-Track or I-beam festoon system is generally the preferred solution because it provides greater cable capacity, higher load ratings, and improved cable support.

Weight capacity: Wire rope festoon trolleys are rated for light cable loads. The total cable weight divided by the number of trolleys must not exceed the rated capacity of the selected trolley car — confirm weight capacity against the manufacturer's published ratings for the specific trolley series selected.

Working travel: Wire rope festoon systems are typically used for shorter travel applications, generally under 75 feet depending on cable weight and system design. For longer travel distances, or where cable loads approach the limits of the wire rope system, C-Track or I-beam festoon systems are the appropriate specification.

Key design considerations: Wire rope systems require sturdy, rigid anchor points at both ends because significant tension is applied to the rope to minimize sag. Rope sag varies with system length and cable load and must be calculated and accounted for when establishing loop depth and tow arm position. The tow arm — supplied by the installing contractor and attached to the moving crane equipment — must be positioned to account for the rope sag under full cable load. Wire rope tension must not exceed safe limits for the wire rope size selected. Wire rope used with festoon systems should be selected with the appropriate coating and construction for the trolley wheels, cable package, and operating environment; PVC-coated wire rope is commonly used in these applications.

System components: For the standard wire-rope system package offered by Crane-Controls.com a complete wire rope festoon system requires: an end clamp to secure one end of the wire rope and cable package, with the opposite end terminating into separate hardware specific to that connection point; a hardware kit including 4 rope clamps, 2 eye bolts, and 2 thimbles for rope termination; the required number of intermediate trolley cars; and 3/16" wire rope with PVC coating (1/4" outside diameter), cut to the required length. Wire rope is supplied approximately 5 feet longer than the system's active travel distance to allow for termination and clamping. Intermediate trolleys are spaced at approximately one trolley per 5 feet of active travel to keep the cable package properly supported along the span. Festoon cable and connectors are not included in standard wire rope system packages and must be ordered separately.

Best for: Shorter travel distances with light cable loads, low travel speeds, simple cable packages of one to two cables or hoses, dry and clean indoor locations.

C-Track Festoon Systems

C-Track festoon systems (also referred to as box track by some manufacturers) are a widely used festoon configuration in US overhead crane and industrial applications. The trolley cars travel inside a rigid enclosed track mounted along the crane runway or bridge. C-Track systems are available in economy and standard duty configurations to match the cable load, travel speed, and runway length requirements of the application.

Economy C-Track systems are suited to lighter loads, moderate travel speeds, and shorter travel distances. Standard duty C-Track systems provide heavier load capacity, higher travel speeds, and longer travel distances, with extra-strong rigid track and premium trolley components for more demanding applications.

C-Track systems require hanger brackets to support the track from the crane structure or runway beam. Mounting surfaces must be available for bracket installation. A tow bar — supplied by the installing contractor and fitted to the moving crane equipment — passes through the lead trolley to pull the festoon along the track as the crane travels.

C-Track pendant systems are a variation of the standard C-Track configuration where the lead trolley is designed to carry a pendant control station rather than connect to a fixed tow bar. This configuration is used when an independently mobile operator control point is required.

Best for: The majority of US overhead crane bridge and runway festoon applications, monorail hoists, transfer equipment, and general industrial machinery where cable loads, travel speeds, and runway lengths fall within the rated capacity of the selected C-Track system.

I-Beam Festoon Systems

I-beam festoon systems mount the trolley cars directly on the lower flange of the crane's existing structural I-beam, eliminating the need for a separate dedicated track installation. I-beam systems are used when cable and hose loads or travel speeds exceed the capacity of C-Track systems, when environmental conditions require a more robust trolley design, or simply when a suitable I-beam is already in place and using it as the festoon support surface reduces installation cost and complexity.

I-beam systems are specified and purchased as individual components rather than pre-engineered packages, because the car selection depends on the specific I-beam size, cable package, working travel, system height, and environmental and performance factors of each installation.

Key design consideration: I-beam systems are custom configured to each installation. Car selection is based on the cable and hose package, the working travel distance, the system height, the I-beam flange size, and environmental and performance requirements. I-beam festoon systems for heavy-duty applications are suited to indoor and outdoor environments including demanding industrial conditions.

Best for: Heavy cable and hose loads, high travel speeds, long travel distances, outdoor and harsh environment installations, and retrofit applications where an existing I-beam structure is available.

Square Track Festoon Systems

Square track festoon systems use a square-profile rail rather than the C-shaped profile of standard C-Track. The square profile provides additional stability for higher cable loads and greater resistance to lateral trolley movement, making square track particularly well suited to dusty environments where the square rail geometry helps shed contamination. Square track can be a suitable specification for curved monorail applications where standard straight C-Track cannot be used.

Best for: Dusty environments, higher cable loads, curved monorail applications.

Festoon System Terminology

Understanding festoon system terminology is essential for correctly specifying system components and calculating the space required for installation.

Working Travel (WT): The actual distance the moving equipment must travel from one end of its range to the other. This is the primary dimension that determines the number of cable loops and cars required.

Loop Depth (LD): The distance the cable loops hang down when the festoon cars are in the parked (fully compressed) position at the fixed end of the system. Loop depth directly affects system height and the number of cars required. A greater loop depth requires fewer cars and less storage space but results in a taller system. A shorter loop depth requires more cars and more storage space but results in a lower system profile. For high-speed applications, loop depth may need to be limited to prevent violent pendulum action in the cable loops during acceleration and deceleration.

Storage Length (ST): The space required at the fixed end of the system to accommodate all festoon cars in their fully parked position when the crane is at the starting end of its travel. Storage length is determined by the number of cars and the length of each car. This space must be available in the installation — it cannot be eliminated. Storage length is one of the most important practical constraints in festoon system design and must be confirmed as available before system specification is finalized.

System Height (SH): The total vertical space the festoon system occupies from the bottom of the track or beam to the bottom of the cable loops at maximum loop depth. This dimension must clear all adjacent equipment, structures, and personnel in the installation area.

Rail Length (RL): The total length of track required for the system. Rail length equals working travel plus storage length, plus end clearances.

Cable Required (CR): The total length of festoon cable needed for the system. Cable length is calculated from the working travel, storage length, and hook-up lengths required at each end of the system.

Loop Clamps: Hardware used to clamp the cable package loops together at regular intervals along the loop length. Loop clamps are commonly used on systems with multiple cables or hoses to keep the package organized and prevent cables from tangling or separating during travel. They are particularly important with round cables and hoses, which have a tendency to twist and move out of position. Flat cable systems in normal conditions may not require loop clamps, but they are recommended for high-speed applications or outdoor installations where wind may destabilize the cable package.

Tow Cables: Secondary support cables installed between festoon cars to relieve tensile stress on the power cables or hoses during travel. Tow cables are recommended for systems with more than 100 feet of working travel and for high-speed applications where acceleration forces would otherwise place excessive mechanical strain on the cable jacket and conductors.

How to Specify a Festoon System

Festoon system specification involves seven steps. Each step should be completed in order, as the outputs of earlier steps determine the inputs for later steps.

Step 1 — Determine the Cable and Hose Requirements

Begin by identifying all cables and hoses that must be managed by the festoon system. For each cable or hose, determine:

Number of conductors and conductor size (AWG)

Cable outside diameter or cross-section dimensions

Cable weight per foot

Cable shape — flat or round

Ampacity requirements

Flat cable vs. round cable: Flat festoon cable should be used whenever possible for C-Track applications. Flat cable minimizes the saddle radius required on the trolley cars, which reduces the size and cost of the festoon system and extends cable service life. Flat cables hang straight down in the loops without twisting or shifting position. Round cables and hoses have a tendency to twist and move laterally in the loops, requiring loop clamps and larger saddle assemblies. For applications where round cable or hose is unavoidable, the saddle radius of the selected trolley car must be appropriate for the outside diameter of the largest cable or hose in the package.

Step 2 — Determine the Maximum Cable or Hose Thickness and Window Opening Required

The trolley saddle should provide a bend radius equal to or greater than the cable or hose manufacturer's specified minimum bend radius. Minimum bend radius requirements vary by cable type — flat festoon cable, round multi-conductor cable, fiber optic cable, and hydraulic hose each have different bend radius specifications published by their respective manufacturers. High-pressure hoses and special cables often require larger bend radii than standard power cable. Confirm minimum bend radius requirements for every cable and hose in the package before selecting trolley cars and select a trolley series whose saddle geometry accommodates the most restrictive item in the package.

The window opening of the trolley car — the rectangular space between the saddle and the clamping hardware — must be large enough to accommodate the full cable package. For flat cable systems, the window opening must be wider than the widest cable in the package, and the cables must be arranged to produce a stable, evenly distributed stack within the window height. For mixed flat and round cable packages, plan the cable layout carefully to confirm everything fits within the selected car's window opening before ordering.

Step 3 — Select the Target System Type and Series

Using the cable package data from Steps 1 and 2, select the festoon system type and series—wire rope, C-Track track economy, C-Track track standard, square track, or I-beam—that meets the following requirements:

Maximum cable thickness or diameter supported by the trolley car saddle

Window opening dimensions to accommodate the total cable package

Weight capacity per car to support the cable load at the specified loop depth and working travel

Maximum travel speed for the crane or equipment

Additional factors that may influence system selection upward to a heavier-duty series include:

Environmental conditions (outdoor, wet, corrosive, high temperature)

Duty cycle (continuous vs. intermittent operation)

Required working speed

Future expandability requirements

Existing I-beam or rail mounting surfaces

Budget constraints

Step 4 — Consider Travel Speed Requirements

Crane or equipment travel speed is a primary festoon design constraint that influences trolley selection, loop depth, tow strap requirements, and overall system duty classification. Festoon systems are generally classified into light duty, standard duty, and high-speed categories — and the boundary between categories varies by manufacturer and system type.

At higher travel speeds, the cable loops accelerate and decelerate with the crane, creating dynamic forces that can destabilize the cable package, cause loop sway, and accelerate trolley and cable wear if the system is not designed to accommodate them. For high-speed applications, the following considerations apply:

Closer trolley spacing may be required to control loop sway and prevent loops from swinging out of position during acceleration

Tow straps or tow cables are generally required to transfer mechanical tensile loads away from the cable jacket

Loop clamps are required to keep the cable package organized under dynamic loading conditions

Dampers or bumpers may be specified to control trolley deceleration at end stops

Loop depth may need to be limited to prevent violent pendulum action in the loops during rapid acceleration and stopping

I-beam systems with steel-wheeled trolleys are typically specified for the highest travel speeds where C-Track systems are insufficient

Confirm the required travel speed with the crane or equipment designer before selecting a festoon system type and series, and verify that the selected system's rated travel speed meets or exceeds the application requirement.

Step 5 — Determine Loop Depth and System Height (SH)

Loop depth and system height are inversely related — a greater loop depth means fewer loops, fewer cars, less storage space, and lower system cost, but a taller system that requires more vertical clearance. The optimal loop depth balances the available system height against the available storage space and the cost of the car quantity required. Many standard festoon installations use loop depths in the range of approximately 3 to 6 feet, although the appropriate loop depth depends on the selected system, cable package, travel, and available clearance.

General guidance:

Many standard festoon installations use loop depths in the range of approximately 3 to 6 feet, although the appropriate loop depth depends on the selected system, cable package, travel, and available clearance.

Loops deeper than 6 feet require special attention on higher-speed applications to prevent pendulum action

Maximizing loop depth within the available system height minimizes the number of cars required and reduces system cost

If storage space is the primary constraint, increasing loop depth is the most effective way to reduce storage length

Step 6 — Determine the Number of Loops and Trolleys Required

Once loop depth and system height are determined, the number of loops required to span the working travel distance (WT) can be calculated from the system's loop chart for the selected trolley series. For the standard festoon arrangement described here, the number of intermediate trolleys is one less than the number of loops.

Storage length calculation: Multiply the number of loops by the length of the intermediate trolley to determine the storage space required. Confirm this space is available at the fixed end of the installation before proceeding. If storage space is insufficient, increase the loop depth to reduce the number of trolleys, or consult with a festoon system specialist for alternative configurations.

Step 7 — Verify Weight Capacity

Calculate the total weight of all cables and hoses across the full system length. Divide the total cable weight by the number of intermediate trolleys to determine the load per trolley. This load must not exceed the rated weight capacity of the selected trolley series. If the load per trolley exceeds the rated capacity, add trolleys (by reducing the loop depth or increasing the number of loops), select a trolley series with higher weight capacity, or reduce the loop depth to lower the system height and reduce the cable weight per trolley.

Cable Selection for Festoon Systems

Flat Festoon Cable

Flat festoon cable is the preferred cable type for C-Track festoon applications. The flat profile minimizes the bend radius at the saddle, extends cable service life, and keeps the cable package stable and organized within the trolley car window. Flat festoon cable is available in PVC and neoprene jacket materials.

PVC jacketed flat festoon cable is suitable for indoor and outdoor operation across a broad temperature range. Standard PVC jackets may become less flexible at low temperatures — for installations where operating temperatures regularly fall below freezing, neoprene cable or a cold-temperature rated PVC compound is the preferred specification. Confirm the cable manufacturer's rated temperature range before specifying for cold storage or outdoor winter applications.

Neoprene jacketed flat festoon cable provides improved flexibility and durability over a wider temperature range than standard PVC, making it the preferred specification for low-temperature environments, outdoor installations, and demanding duty cycle applications. Neoprene festoon cable is available in larger conductor sizes for high-ampacity applications.

Round Cable and Hose

Round cable and hose are used in festoon systems where the application requires or favors a round construction—for example, larger power cables, multi-conductor control cables, pneumatic hoses, or hydraulic hoses. Round cable systems require larger saddle assemblies and are more susceptible to twisting and lateral movement in the loops than flat cable systems. Loop clamps are required for most round cable and hose applications to keep the package organized.

For applications with fewer than three cables or hoses, wire rope-supported or C-Track systems are generally suitable. For three or more cables or hoses, or for applications where the cable package includes large-diameter items, I-beam systems can provide higher trolley load capacities and greater saddle flexibility for applications with larger or more complex cable packages.

Special Festoon System Configurations

Pendant Control Festoon Systems

Pendant control festoon systems incorporate a specially designed lead trolley that carries the crane pendant control station, allowing the operator control point to travel with the crane bridge or trolley independently of the crane structure. C-Track pendant systems are available for both standard and heavy-duty applications and are the correct specification when an independently mobile operator control point is required — for example, on long-travel bridge cranes where the operator requires a mobile control position that travels with the equipment.

Pendant festoon systems require a stop bracket at the fixed end of the system to prevent the pendant trolley from traveling beyond the system's designed range. A brake mechanism on the pendant trolley may also be required for high-speed applications to control deceleration at the end of travel.

Tow Ropes and Tow Chains

Tow ropes and tow chains are secondary structural members installed between the festoon trolleys to carry the mechanical tensile load during travel. They are often recommended for longer travel distances and high-speed applications where acceleration forces would otherwise place excessive mechanical strain on the cable jacket and conductors — consult the system manufacturer's guidelines for the specific working travel and travel speed of the installation. Tow ropes and tow chains are slightly shorter than the cable loops so that the mechanical load is transferred to the structural member rather than the cable jacket — protecting the cable from accelerated wear and mechanical failure. Consider bungee style tow ropes for fast moving, fast accelerating applications.

Festoon Systems Available from Crane-Controls.com

Crane-Controls.com stocks or features festoon systems and components from four industrial festoon manufacturers for US crane and industrial applications.

Insul-8 Festoon Systems (Crane-Controls.com stocks) — collection page — Heavy Duty C-Track (70–80 lbs per trolley, 300–500 ft/min), Standard Duty C-Track (20–40 lbs per trolley, 130–250 ft/min), Square Track (45 lbs per trolley, 250 ft/min), I-Beam Trolley, Stretch Wire, and Festoon Accessories including trolley assemblies, cable entry components, loop clamps, end clamps, and connectors.

Duct-O-Wire Festoon Systems (Crane-Controls.com stocks) — collection page — 12 Gauge C-Track (heavy duty), 14 Gauge C-Track (standard duty), Aluma-Track (aluminum C-Track for corrosion-sensitive and weight-conscious installations), I-Beam, and Wire Supported configurations. Cable sizes from #4AWG to #16AWG in flat and round configurations.

Wampfler Festoon Systems (Crane-Controls.com features) — collection page — C-Track, I-Beam, and Wire Rope and square track configurations for US overhead crane installations requiring Wampfler electrification packages.

Vahle Festoon Systems (Crane-Controls.com features) — collection page — C-Rail and I-Beam configurations for contact-protected and minimum-space overhead crane electrification applications.

Crane-Controls.com Festoon Systems — collection page — Flat Festoon Cable, C-Rail, I-Beam, Wire Rope Kit, and Other Festoon Hardware configurations stocked under the Crane-Controls.com brand for US crane builders requiring a direct-source festoon solution.

Application Support

Crane-Controls.com's technical team provides pre-sale application support for festoon system selection, sizing, and component specification for US overhead crane and industrial installations. Support includes cable package review, system type selection, loop depth and storage length calculation, car selection, and component quantity determination.

Systems can be specified to support installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards.

Contact Crane-Controls.com at +1 (888) 822-2024 or info@crane-controls.com.

This guide is intended as general application guidance for festoon system specification. Final system selection should be based on the specific crane design, operating conditions, cable and hose requirements, applicable codes and standards, and the recommendations of qualified engineering and equipment specialists.
