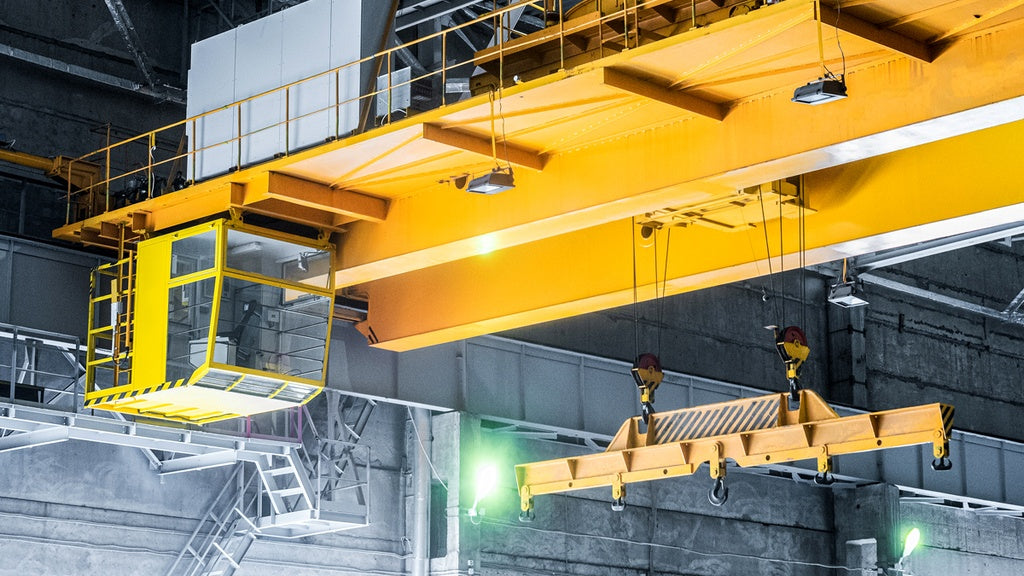

How to Size Conductor Bar for Your Overhead Crane

Proper conductor bar sizing balances electrical performance, reliability, and project cost. Undersizing can increase voltage drop and operating temperatures, while oversizing may add unnecessary material, copper content, and hardware cost the project will never use. Getting the size right takes a handful of factors — motor load, duty cycle, temperature, runway length, and power feed location — worked through in the right order.

This guide walks through that process step by step, then maps the result to specific series across SAF-T-BAR, Insul-8, Wampfler, and Duct-O-Bar so the output of the calculation turns into an actual product selection.

Information You'll Need Before You Begin

·       Supply voltage

·       Phase (single or three-phase)

·       Motor horsepower for each motion (hoist, bridge, trolley)

·       Number of motors that can run simultaneously

·       Runway length

·       Power feed location (or planned location)

·       Ambient temperature range at the installation

·       Number of cranes sharing the runway

·       Crane service classification

Step 1: List the Motor Loads

Start with every motor that could be running at once on a single movement — hoist, trolley, and bridge — plus anything else energized at the same time: auxiliary hoists working with the main hoist, magnets, lighting, or air conditioning. Convert each motor's horsepower to full-load amperage using the standard motor horsepower-to-amperage tables (NEC Article 430), applied at the system's actual voltage and phase configuration.

For overhead crane installations designed in accordance with the National Electrical Code (NEC), Article 610 establishes the minimum conductor ampacity requirements. Section 610.14 requires sizing based on 100% of the current for the largest motor or group of motors involved in any single crane movement, plus 50% of the current for the next-largest motor or group of motors operating simultaneously. A crane with a 40 HP hoist motor, a 20 HP bridge motor, and a 5 HP trolley motor running simultaneously is sized on 100% of the hoist load plus 50% of the combined bridge and trolley load — not the full nameplate sum of all three.

Step 2: Apply the Duty Classification

Once the baseline ampere load is calculated, it often gets adjusted for how hard the crane actually works — and this is one of the areas where the four brands differ in methodology:

Insul-8 Safe-Lec 2's Factor K table (allowable continuous current = nominal rating × K):

Duct-O-Bar's published duty-class factors, applied directly to the ampere load calculated in Step 1:

SAF-T-BAR and Wampfler both take a less table-driven approach than Insul-8 or Duct-O-Bar — SAF-T-BAR treats its nominal ratings as already fully loaded at 100% duty and routes anything beyond that to factory engineering, while Wampfler's own literature acknowledges that shorter duty cycles permit higher current without publishing a single standardized multiplier the way Duct-O-Bar does. What's consistent across all four brands is the underlying principle: most cranes in service operate well under a 40% duty cycle in practice, but the classification used for sizing should reflect the application's actual demand, not an optimistic estimate — cranes in continual, high-duty service can exceed a conductor's intermittent duty rating if the duty cycle is underestimated at the design stage.

Step 3: Check Temperature Derating

Conductor bar amperage ratings are established at a reference ambient temperature specified by the manufacturer, with the conductor's insulating cover rated to a maximum operating temperature. If the installation runs hotter than that baseline — whether from high ambient temperature or radiant heat sources like furnaces, billets, or slag — the usable current capacity of the conductor drops. A conductor rated for continuous duty at moderate ambient temperatures may need to be upsized, fitted with a higher-temperature cover, or protected with heat shields for radiant sources, to avoid cover deformation that can interfere with collector tracking.

Reference temperatures and cover limits vary by brand: SAF-T-BAR references 86°F (30°C) with standard PVC covers rated to 160°F (71°C); Insul-8 Safe-Lec 2's Factor K table (Step 2) already folds temperature and duty cycle into a single combined value, so no separate temperature check is needed for that series; Duct-O-Bar publishes a standalone derating table (100°F = 95% capacity, 130°F = 75%, 160°F = 50%) applied after the duty-class factor; and Wampfler references 95°F (35°C), with a separate correction factor table (ranging from roughly 0.99 at 40°C down to 0.68–0.88 at 85°C depending on conductor material) applied on top of the duty-cycle adjustment from Step 2. For any brand where duty and temperature are handled as two separate factors rather than one combined value, both checks apply — check the specific series' documentation to confirm whether they're combined or sequential.

Step 4: Account for Multiple Cranes on a Shared Runway

Where more than one crane operates on the same runway conductor, each crane's load is calculated individually using Steps 1–3, then the totals are summed and reduced using the applicable demand factors published in NEC Table 610.14(E) — since it's unlikely every crane on a runway is drawing maximum current at the same moment. The demand factor decreases as more cranes share the same conductor; the exact value for a given crane count should be pulled from the current edition of the table rather than assumed. The conductor itself must be sized for the full demand-adjusted runway load, even though each crane's collectors only need to be sized for that individual crane.

Wampfler's own documentation includes a similar simultaneity concept expressed differently: rather than a single demand-factor table, it accounts for the full current of the most powerful motor across all cranes sharing a track, plus a declining percentage of the next-most-powerful motors on additional cranes. For installations designed to NEC, Table 610.14(E) remains the governing reference; Wampfler's version is useful context when cross-referencing an existing non-NEC installation.

Step 5: Calculate Voltage Drop

CMAA recommends limiting voltage drop to 3% on runway conductors and 2% on bridge conductors, measured from the power feed to the farthest point on the run. Wampfler's own published tolerance is more permissive — its documentation describes "generally 2-5%, at most 10% including the connection feed cable" as acceptable. Where a project is specified to CMAA standards, the CMAA figures govern regardless of brand; the Wampfler figure is worth knowing mainly so it isn't mistaken for a stricter industry-wide standard when cross-referencing Wampfler's own literature.

The applicable formula depends on current type:

Where L is the distance from power feed to the farthest load point, I is total amperes drawn, and Z (AC impedance) or R (DC resistance) is a per-foot value specific to the conductor's material and amperage rating. The Z or R value itself is supplied by the conductor manufacturer's engineering data and varies by conductor size and construction — it isn't a fixed constant that carries across brands or amperage classes.

Power feed location has an outsized effect here, and this is one area where all four brands publish essentially the same principle even though the exact multipliers are expressed slightly differently. An end-fed system uses the full runway length as L. Center-feeding a run effectively halves L, since the farthest point is now half the total runway length in either direction. Feeding at additional points — a quarter point, a sixth point, a tenth point, or more — shortens the effective distance further; Wampfler's documentation, for example, publishes options as granular as four-point feeding (L/14 effective distance) for very long or high-amperage runs. Adding feed points costs more in conduit and cabling, so the trade-off is worth running the numbers on for long or high-amperage runways before defaulting to a single end feed.

Step 6: Confirm the Collector Rating, Not Just the Conductor Rating

Conductor bar and collectors are rated separately, and manufacturers routinely offer higher-amperage conductor than the largest available single collector — or rate the same collector differently depending on how the crane actually operates. Two concrete examples from published brand documentation illustrate why this step can't be skipped:

·       SAF-T-BAR Series H publishes separate continuous and intermittent collector ratings that differ substantially — its HC1000-class heat-sink collector, for instance, is rated 1,000A intermittent but only 800A for continuous or intermittent service. Specifying to the intermittent number alone would overstate what the collector can deliver in continuous operation.

·       Wampfler's 0812 collectors rate current capacity differently depending on whether the crane is moving or standing still: a 100A-rated collector on an aluminum rail is limited to roughly 50A in standstill mode at 100% duty cycle, since a stationary collector concentrates heat in one spot rather than spreading it along the rail. Applications with significant dwell time — repeated positioning, dwell-and-lift cycles — need this checked specifically, not just the moving rating.

Because the conductor must handle the full demand-adjusted load of every crane on the runway while each crane's collectors only need to handle that crane's individual draw, it's possible to correctly size the conductor and still undersize the collector if the two steps get conflated. Where a single crane's load exceeds what one collector set is rated for, additional collectors are added — with the collector closest to the power feed point typically carrying the largest share of the load.

A Worked Example

A 250-foot runway, fed at the center, supplies 460V 3-phase 60-hertz power to a bridge crane with a 30 HP hoist motor, a 15 HP bridge motor, and a 5 HP trolley motor. The crane runs a moderate duty cycle — well under 40% in practice — indoors, with ambient temperature ranging 50°F–90°F.

Step 1: Using standard 460V, 3-phase motor full-load current values: the 30 HP hoist motor draws approximately 40A, the 15 HP bridge motor approximately 21A, and the 5 HP trolley motor approximately 7.6A. Applying the NEC 610.14 calculation — 100% of the largest motor plus 50% of the next-largest motor or group of motors:

40A (hoist, 100%) + 50% of (21A + 7.6A combined bridge/trolley group) = 40A + 14.3A = 54.3A

Step 2: This crane's duty cycle falls comfortably under 40% in practice. Under Insul-8's Safe-Lec 2 factor K table, that duty cycle combined with the ambient temperature in this example would allow a conductor with a lower nominal rating than 54.3A to carry the load continuously; under Duct-O-Bar's methodology, this would likely fall under Light or Average Duty (90–100% of calculated load, i.e. no increase). In practice, though, the voltage drop check in Step 5 is frequently the more binding constraint on a run this length, so the final tier gets confirmed there rather than assumed from the duty factor alone.

Step 3: Ambient conditions of 50°F–90°F (10°C–32°C) fall within the standard reference range for all four brands' published ratings — no upward temperature adjustment is required for this example, though the specific derating table for the brand ultimately selected should still be checked at the final amperage tier.

Step 4: Single crane — no demand factor needed.

Step 5: With center feed, L = 125 ft (half the 250-ft runway). A 54.3A load falls in the roughly 90A conductor class; using a manufacturer-published impedance value of Z = 0.0011 ohms/ft for a conductor in that class:

V = 125 × 54.3 × 0.0011 × 1.73 ≈ 12.9 volts

12.9V ÷ 460V ≈ 2.8% voltage drop — under CMAA's 3% runway threshold, but close enough to it that a slightly longer runway or a lower power feed placement could push this over the line. If the result had exceeded 3%, the next amperage tier up would be selected and the calculation rerun until the drop cleared the threshold.

Step 6: With voltage drop confirmed, the collector set is checked against the 54.3A calculated load — not just the conductor's rated capacity, and not just the moving-duty rating if this crane has meaningful dwell time — before the system is finalized.

This is the same basic sequence for any runway; the numbers, reference temperatures, and duty methodology change by brand, but the six steps don't.

Matching the Result to a Series

Once the amperage requirement is calculated, it maps onto specific series across all four brands Crane-Controls.com stocks.

For a full breakdown of what differentiates each series beyond amperage — curve radius, enclosure style, environmental configuration — see Conductor Bar Series Comparison: SAF-T-BAR vs. Insul-8 vs. Wampfler vs. Duct-O-Bar. (this is a future link)

Other Factors That Affect the Final Selection

The ampacity calculation above gets a conductor size, but a few other factors typically decide the final product:

·       Grounding. NEC 610.61 requires a dedicated bonding conductor for cranes built from 2005 onward — the bridge and trolley frames aren't considered grounded through the wheels and rails alone.

·       Application type. Most crane applications draw current while moving, which spreads heat generation across the length of the bar. Stationary applications — welding equipment, or repeated lifting at a single spot — concentrate heat in one area and may call for a derated collector or verified bar rating for that specific duty, as illustrated by Wampfler's standstill-vs-moving collector ratings in Step 6.

·       Environmental exposure. Chemical fumes, dust, moisture, or radiant heat all affect material and hardware selection independent of the amperage calculation — stainless steel hardware for acid/base exposure, insulated hangers where moisture is present, non-PVC covers where radiation is a factor.

·       Mounting space. Standard bottom-entry mounting isn't always available. Lateral mounting or staggered collector configurations address tight clearances, though environmental exposure needs a second look once mounting orientation changes.

Frequently Asked Questions

How do I determine conductor bar amperage? Calculate the combined motor load per NEC 610.14, adjust for the crane's duty classification per the specific brand's published guidance, check for temperature derating, and confirm the result against a voltage drop calculation for the specific runway length and power feed location. The six steps above walk through this in order.

Can one conductor bar supply two cranes? Yes — the conductor is sized for the combined demand-adjusted load of all cranes sharing the runway, using the demand factors in NEC Table 610.14(E). Each crane's collectors, however, only need to be rated for that individual crane's load, not the full runway total.

How much voltage drop is acceptable? CMAA guidance caps voltage drop at 3% on runway conductors and 2% on bridge conductors, measured from the power feed to the farthest point on the run. Individual manufacturers may publish somewhat different tolerances in their own literature; where a project is specified to CMAA standards, the CMAA figures govern.

Should I size conductor bar by motor horsepower? Motor horsepower, converted to full-load amperage, is the starting point — but final sizing also depends on duty classification, ambient temperature, runway length, power feed location, and whether multiple cranes share the same runway.

What happens if conductor bar is undersized? An undersized conductor runs hotter than intended, increases voltage drop beyond acceptable limits, and can accelerate wear on collector shoes and covers. In severe cases, excess heat can deform the insulating cover and interfere with collector tracking.

Do all conductor bar brands use the same sizing methodology? No. SAF-T-BAR, Insul-8, Wampfler, and Duct-O-Bar each publish nominal current ratings at different reference temperatures and apply duty-cycle and temperature adjustments differently — some combine both into a single factor, others treat them as sequential checks, and SAF-T-BAR doesn't publish a duty-class multiplier table at all. The underlying NEC and CMAA requirements apply regardless of brand, but the manufacturer-specific adjustment method should be confirmed against the series being specified.

Crane-Controls.com supplies products used in installations designed in accordance with OSHA 1910.179, CMAA, and applicable ASME B30 standards. Final compliance depends on the complete system design, installation, and applicable regulations.
